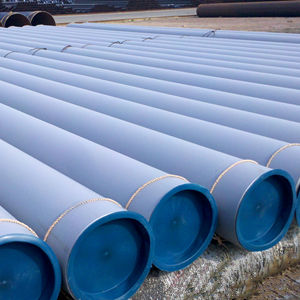

16 Inch API 5L B Pipe with Epoxy Resin
16 Inch API 5L B Pipe
We are manufacturer of Seamless Pipe and providing 16 Inch Sch40 12m API 5L B Seamless Pipe BE Epoxy Resin Coating for Ghana.
API 5L B seamless pipe is one of the most popular carbon steel material for gas, water, oil transportation and high temperature and pressures service. Due to the weakness of easy to be rusted, it is usually provided with various coatings. Epoxy resin is a coating that commonly used in water pipes. The other commonly used coatings are galvanized, black primer, and 3PE coating.
16 Inch Pipe Feature
Size: 16 Inch Sch40
Length: 12m
Type: Seamless Pipe
End Type: BE
Surface: Epoxy Resin
Material: API 5L B
API 5L Pipe With Epoxy Resin
Material Grades of API 5L Pipes
This standard specification covers A25, A, B and “X” grades. The X grade mainly includes X42, X46, X52, X56, X60, X65, X70, and X80, the two-digit number following the “X” represent the pipe’s PSI minimum yield strength that is produced.
They are the material for linepipe and pipe fittings such as elbow, bend, pipe nipples.
Grade B Chemical Composition
| API 5L B | C | Mn | P | S |
|---|---|---|---|---|
| SMLS | 0.28 | 1.2 | 0.3 | 0.3 |
| Welded | 0.26 | 1.2 | 0.3 | 0.3 |
16″ API 5L Pipe Grade B Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 415 | 240 | 20 |
Epoxy Resin Coating
Epoxy Resin Coating has good adhesion so it can firmly attached to the surface to protect them. It is also leak proof and water proof, withstand marine microbial contamination, so seawater application is also its area. Besides, the price is not expensive. It is a preferred choice for coating special used water pipe as well as rehabilitating water pipes.

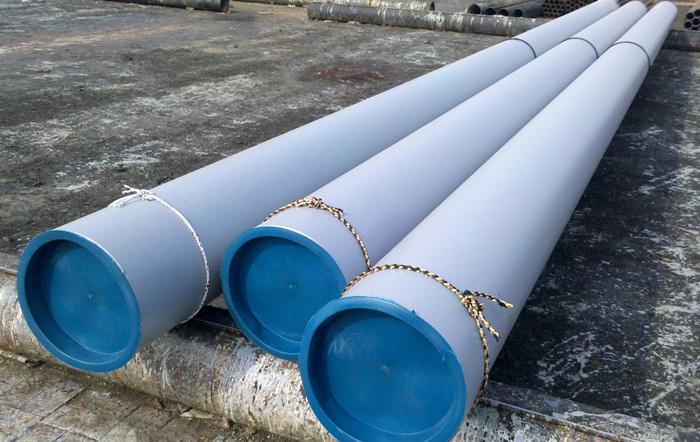

16 inch API 5L Pipe
Seamless Pipe Dimensions
| Diameter | 1/2” to 60” |
|---|---|
| Wall Thickness | Schedule 20 to Sch XXS |
| Length | Single Random, Double Random, Cut Length |
| End | Plain End (PE), Beveled End (BE) |
| Shape | Round, Square, Hex or customized |
Carbon Steel Pipes Delivery
Package
- Bundle packing for 16″ API 5L Pipe
- Paint on the pipe and plastic covers at ends
- Clients’ requirements
Quality
- MTC
- Third Party Inspection: BV, SGS, LR, DNV, ABS
Shipment
- LCL, 20GP, 40GP, Air, Courier
Certificate
- CE, ISO, TEST REPORT
