Sockolet Definition

We are manufacturer of sockolet and supplies Class 3000, 6000 in kinds of materials such as carbon steel, stainless steel, alloy steel.

Sockolet is a branch connection pipe fittings that used to create integrally reinforced connection from a run pipe to a branch pipe at 90 degree. This is forged pipe fittings with high strength and clear cost advantages over conventional pipe branching techniques.

Its installation is also quite easily: one side is fixed onto the run pipe with a full penetration groove weld, the other is socket weld with the branch pipe. Socket welding means the pipe will be inserted into a recessed area of sockolet then welding them together. The branches size can be equal or smaller than the ran pipe’s.

Branch Connection Fittings Dimensions

Pressure: 3000LB, 6000LB
Size: from (1/4-36)″ to (5-36)
Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy and Copper Alloy
Standard: MSS-SP-97, ASME B16.11
Finish:Galvanized or Black,PE and Pickled
Packing: Carton box and wooden box

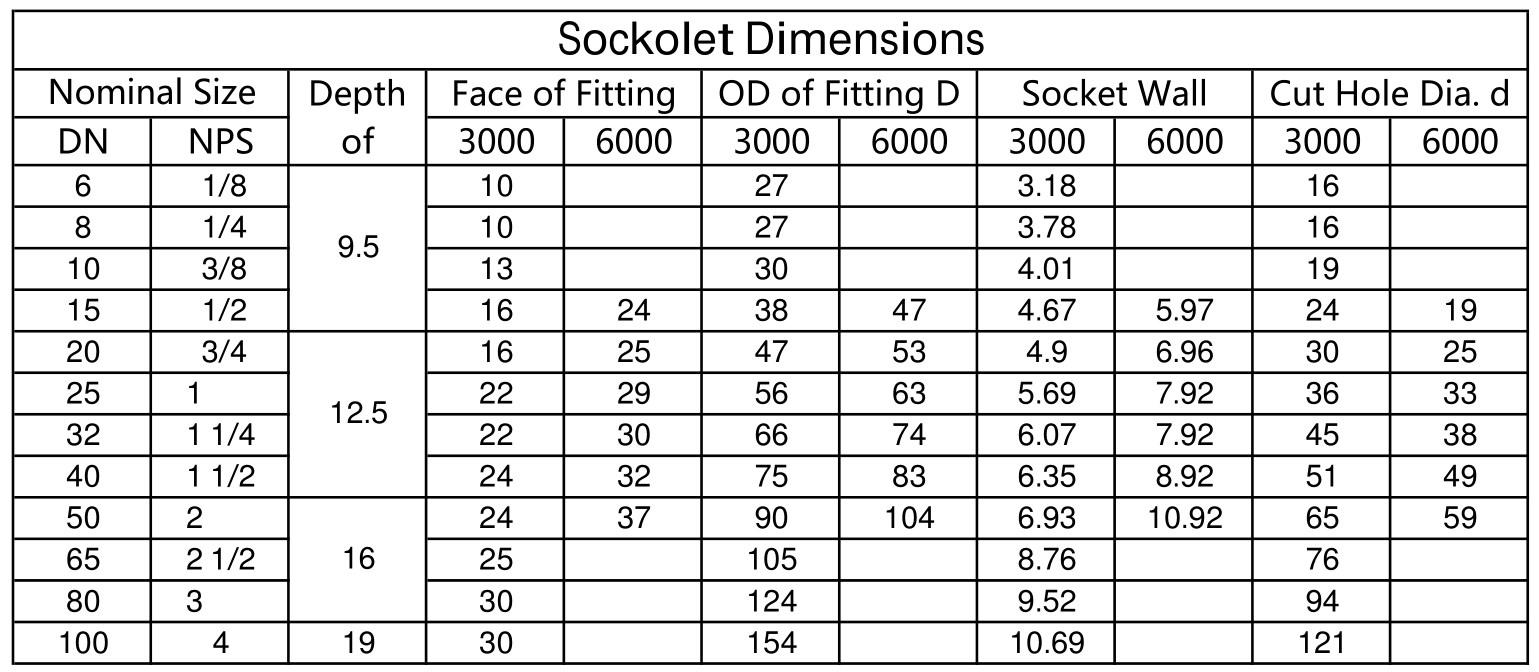

Sockolet Dimension Chart

Branch Connection Fittings Material Specification

Stainless Steel Sockolet:
ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Branch Connection Fittings:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Sockolet:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Fittings:
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91

ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Nickel & Copper Alloy Pipe Fittings:

NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY, C70600, C71500

Key advantages of Socketolet

Sealing principle: mainly through the sealing material (such as rubber sealing ring) to form a seal between the socket and the pipe.

Sealing effect: The sealing performance is good and can meet the sealing requirements of general low-pressure pipeline systems, but under high-pressure environments, the sealing material may be squeezed and deformed, affecting the sealing effect.

Applicable pipe materials: commonly used for plastic pipes (such as PVC, PPR, etc.), thin-walled metal pipes, etc.

Applicable working environment: suitable for low-pressure, normal temperature working environments, such as building water supply and drainage systems, urban water supply systems, etc.

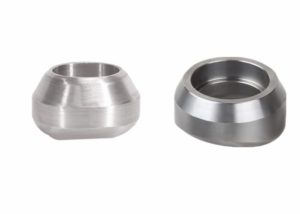

Weldolet VS Sockolet

Sockolets is socket weld fittings, its diameter is from 1/8” to 4”, and the pressures are Class 3000, class6000 and class 9000. Whereas weldolet is buttweld fittings, the dimension range is much larger.

Weldolet VS Sockolet

What is a Sockolet Used For

• Offer branches
• Reducing pipe size
• Change the direction in 90 degree
• Creat integrally reinforced connections
