ASTM A105 Weldolet 3 Inch

Carbon Steel Forged Weldolet

Leading outlet manufacturer ZIZI Engineering supplies 3 Inch Weldolet CS ASTM A105 BE SEAMLESS ASME B16.9 Sch STD WT for project. At the same time, customer also purchased weld neck flange, butt weld fittings, sockolet which are all for connecting pipeline.

The project is oil tank for storage and fabricated by ASTM A283 Grade C steel plates. After the tank fabrication, they will transfer the oil by our pipeline, various fittings, gaskets and valves.

ASTM A105 Weldolet Dimension

Size: 12 in x 2 in

Thickness: Sch80 x 160

End Type: BW

Standard: MSS SP-97

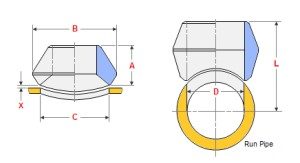

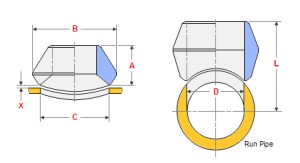

ASTM A105 Weldolet Dimensions

Run pipe Nominal Size		Branch Nominal Size		Length			OD of Fitting			Cut hole Dia.
Run pipe Nominal Size		Branch Nominal Size		A			D			d
DN	NPS	DN	NPS	STD	XS	SCH160	STD	XS	SCH	STD	XS	SCH160
8~900	1/4~36	6	1/8	16	16	–	24	24	–	16	16	–
10~900	3/8~36	8	1/4	16	16	–	26	16	–	16	16	–
15~900	1/2~36	10	3/8	19	19	–	30	30	–	19	19	–
20~900	3/4~36	15	1/2	19	19	28	36	36	36	24	24	14
25~900	1~36	20	3/4	22	22	32	43	43	46	30	30	19
32~900	11/4~36	25	1	27	27	38	55	55	51	36	36	25
40~900	11/2~36	32	11/4	32	32	44	66	66	63	45	45	33
50~900	2~36	40	11/2	33	33	51	74	74	71	51	51	38
65~900	21/2~36	50	2	38	38	55	90	90	82	65	65	43
80~900	3~36	65	21/2	41	41	62	104	104	98	76	76	54
90~900	31/2~36	80	3	44	44	73	124	124	122	93	93	73
100~900	4~36	90	31/2	48	48	–	138	138	–	113	113	–
125~900	5~36	100	4	51	51	84	154	154	154	120	120	98
150~900	6~36	125	5	57	57	94	187	187	188	141	141	122
200~900	8~36	150	6	60	78	105	213	227	222	170	170	146
250~900	10~36	200	8	70	99	–	265	292	–	220	220	–
300~900	12~36	250	10	78	94	–	323	325	–	275	265	–
350~900	14~36	300	12	86	103	–	379	381	–	325	317	–
400~900	16~36	350	14	89	10	–	411	416	–	257	361	–
450~900	18~36	400	16	94	106	–	465	468	–	408	403	–
500~900	20~36	450	18	97	111	–	522	525	–	459	455	–
550~900	22~36	500	20	102	119	–	573	584	–	508	509	–
650~900	26~36	600	24	116	140	–	690	708	–	614	612	–

MSS SP-97 Forged Weldolet

Inspection

Inspecting Forged Weldolet according to MSS SP-97 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASTM A105 Chemical Composition

C	Mn	P	S	Si
0.15 max	0.6-1.05	0.035	0.04	0.1 min

ASTM A105 Mechanical Properties

Tensile Strength	Yield Strength	Elongation
485 (Mpa)	250 (Mpa)	30 (%)

Carbon Steel A105 Weldolet

Surface Treatment

All forged pipe weldolet are normalized heat treatment and surfaced with oil before delivery.

Weldolet Dimensions

Standard	ASME/ANSI B16.11 MSS-SP-97
Diameter Range	1/8 to 4 inch / DN6-DN100
Pressure Rate	XS, SCH160, XXS
Outlet Types	Weldolet, Threadolet and Sockolet
Stainless Steel	ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310
Duplex Steel	ASTM A182 F51, F53, F55
Carbon Steel	ASTM A105, A350 LF2/LF3
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22 ,F91

2 Inch Pipe Weldolet

Package

Packed 2 Inch ASTM A105 Weldolet into plastic bag and then put into carton.

ASTM A105 Forged Steel Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT
