We are manufacturer of high quality ASTM A234 WPB Reducing Tee and supply them in large and small quantities with best price.

ASTM A234 carbon steel buttweld fittings are very prevalent and largely used in different industries. It has great cost advantages but do not so good at corrosion resistance. Fortunately, there are many coatings to choose for enhancing the ability of anti rust.

Steel pipe reducing tee is used as a branch connection fittings to offer a smaller branch than main pipes. Its end could be buttweld, socket weld and threaded. Butt weld reducing tee is the most common used in industry due to the large dimension range and leak-proof joint.

12” x 10” Reducing Tee Dimensions

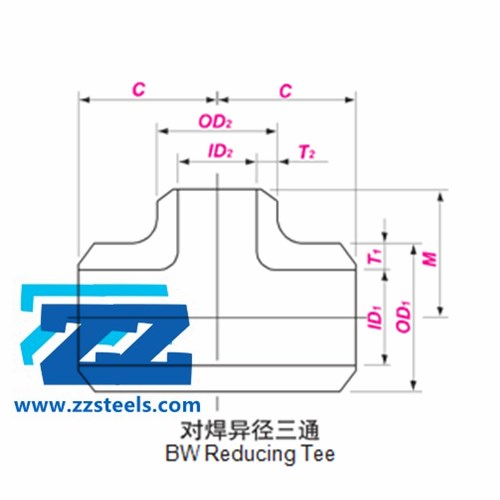

Reducing Tee Dimensions

Nominal Size: NPS 12 X 10

Outside Diameter at Bevel: OD1=323.8, OD2=273

Center to End: C=254, M=241

Standard: ASME B16.9

Material: ASTM A234 WPB Reducing Tee

A234 Reducing Tee Weight Chart in kg

Butt weld tee weight in kg

Reducing Tee ASTM A234 Package

All of ASTM A234 WPB reducing tee will be wrapped with plastic film, and based on the dimensions they will be put into wooden cases or packaged on wooden pallets.

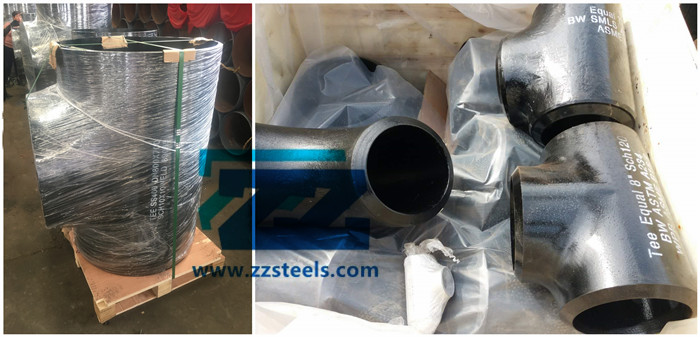

Carbon steel buttweld tee

ASTM A234 WPB Reducing Tee Inspection

1. Marking: Correct and complete. Eg: “TEE ASTM A234 WPB 12”X10” SCH40 SMLS 89012”
2. Surface: hand touch and visual check.
3. Dimension: Measure the size of outside diameter, center to end and check if they are in tolerance.
4. Third party inspection: BV, DNV, ABS, SGS.

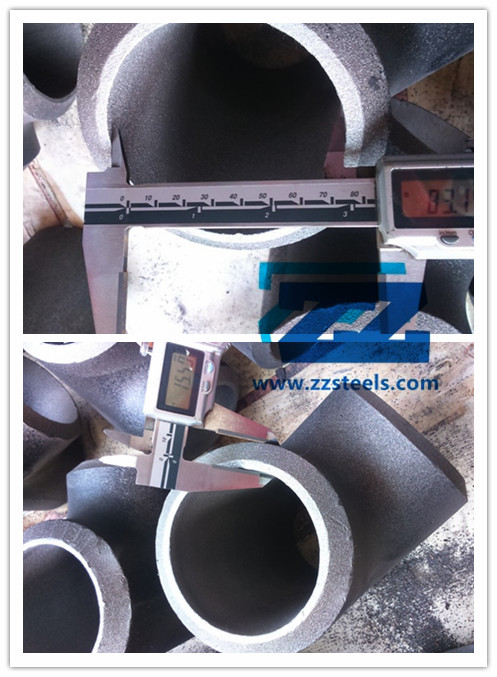

Inspection of Buttweld Tee

Supply range of Buttweld Fittings

Q&A For Carbon Steel Pipe Fittings Shipment

1. When will the products ship?

Mostly within 15 days.

2. When will I get the tracking number?

Tracking number is available 24 hrs after shipping.

3. Who pays for shipping?

The buyer.

4. From which port is the goods delivered?

Usually is Shanghai, Tianjin, Qingdao, or as customer required.

5. What are the coatings for carbon steel pipe fittings?

Galvanized, PE Coating, Black Primer for ASTM A234 WPB reducing tee

The post Reducing Tee ASTM A234 WPB appeared first on Supplier of Quality Forged Fittings-Flanges.

High quality manufacturer Zizi stores 3000# Reducing Tee socket weld tees in large quantities, they are qualified and equipped with Mill Test Certificate.

Socket weld fittings are popular among small diameter pipe system applications, because they have as strong and safe connection as butt weld fittings but they are easier to welding. Class 3000 socket weld fittings is one of the commonly used type which suits for various indusrtial projects.

Socket weld unequal tee is a traditional branch connection fittings for pipes with different diameter. It requires the outside diameter of pipe is slightly smaller than the inside diameter of socket weld tee, so that the pipe can be inserted into the socket bore and be welded.

3000# Reducing Tee Dimensions

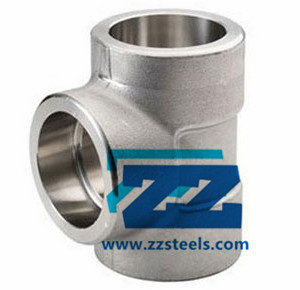

1X2 Class 3000 Reducing Tee

Type: Socket Weld Reducing Tee

Standard: ASME B16.11

Diameter: 2” X 1”

Pressure Rating: Class 3000

Material: ASTM A182 F316

Heat Treatment: Solution

Surface: Anti-rust Oil

Socket weld Tee Dimensions

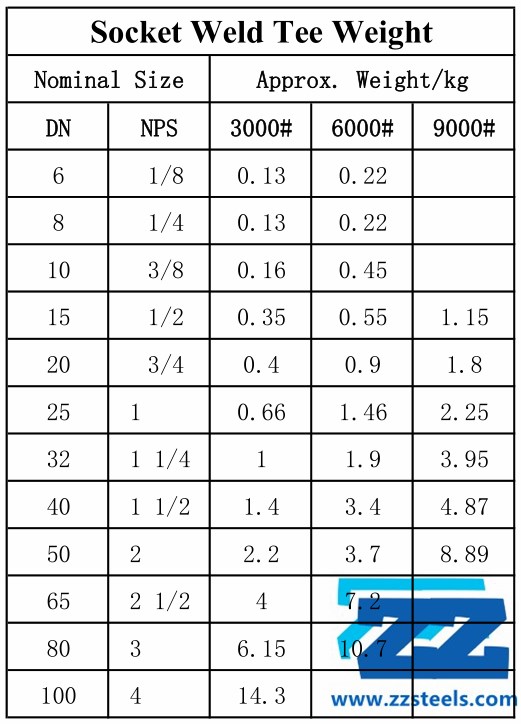

Socket Weld Tee Weight

Socket Weld Tee Weight

Inspection of Stainless Steel Reducing Tee

• Check the appearance of class 3000 reducing tee, make sure the surface is clean, smooth and no defects.
• Measure the dimensions of socket, depth of socket, wall thickness and center to bottom of socket and ensure they are in tolerance.
• Test the chemical composition of SS 316 by direct reading spectrograph.
• Support for third party inspection

Package of 1″ x 2″ Socket Weld Reducing Tee

• Anti rust oil for all forged fittings.
• Put 1 x 2 class 3000 reducing tee in plastic bags
• Pack the bags into carton cases and tag size, material and quantity on the cases.
• Put carton cases into wooded cases.

Socket Weld Fitings Types

1. 90 Degree Elbow, 45 Degree Elbow

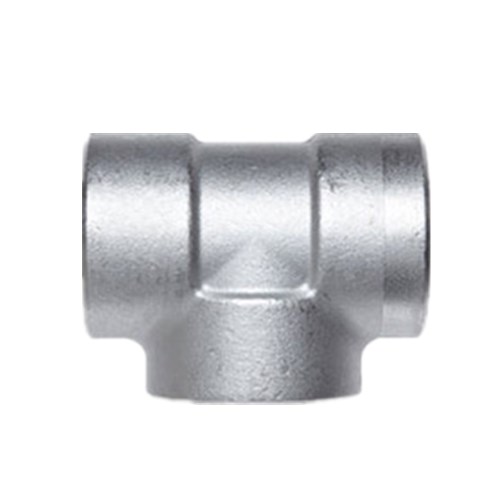

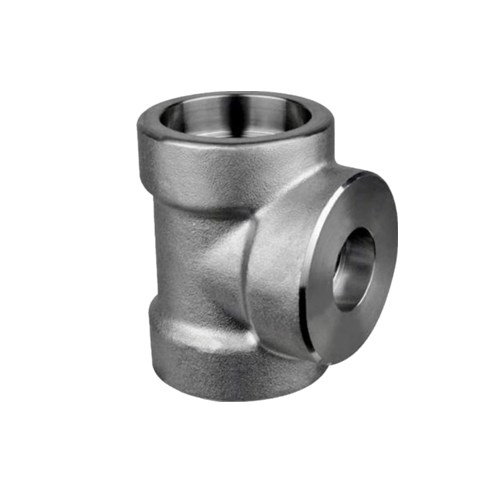

2. Equal Tee, Reducing Tee
3. Pipe Cap, End Cap
4. Half Coupling, Full Coupling
5. Pipe Union
6. Sockolet

The post Class 3000 Reducing Tee appeared first on Supplier of Quality Forged Fittings-Flanges.

As a Buttweld Fittings manufacturer and exporter, Zizi produced Seamless 10″ Sch 80 Carbon Steel Equal Tee A420 WPL3 ASME B16.9 and delivered them to Mexico in a short time.

Buttweld straight tee is very common in industrial pipe systems in order to offer a branch which has the same diameter with the main pipe. The carbon steel tees have high performance and low price meanwhile so that they are prevalent by customers. They can painted with different coatings to overcome the weakness that easy to be corrosive.

Zizi is the leading manufacture and exporter of steel pipe fittings, our products cover buttweld fittings, socket weld fittings, threaded fittings and forged flanges in carbon steel, stainless steel and alloy steel.

What is Seamless Tee?

Seamless carbon steel tee is made of seamless carbon steel pipe. Its name comes from their row material and the produce technique. The other type is welded tees. Seamless tees are more common and popular based on their high performance.

ASME B16.9 Tee Dimensions

Surface for Carbon Steel Equal Tee

• Hot Dip Galvanizing
• PE Coating
• Black Primer
• Colors According to Requirement

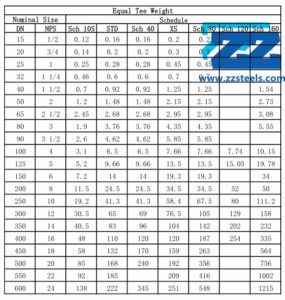

Carbon Steel Equal Tee Weight Chart

Equal Tee Weight

Package of 10″ Equal Tee

Wrap 10″ Sch 80 ASTM A420 WPL3 Equal tee with plastic film and put it in wooden cases.

• For carbon steel equal tee within 16 inch: Put them into Wooden Cases.

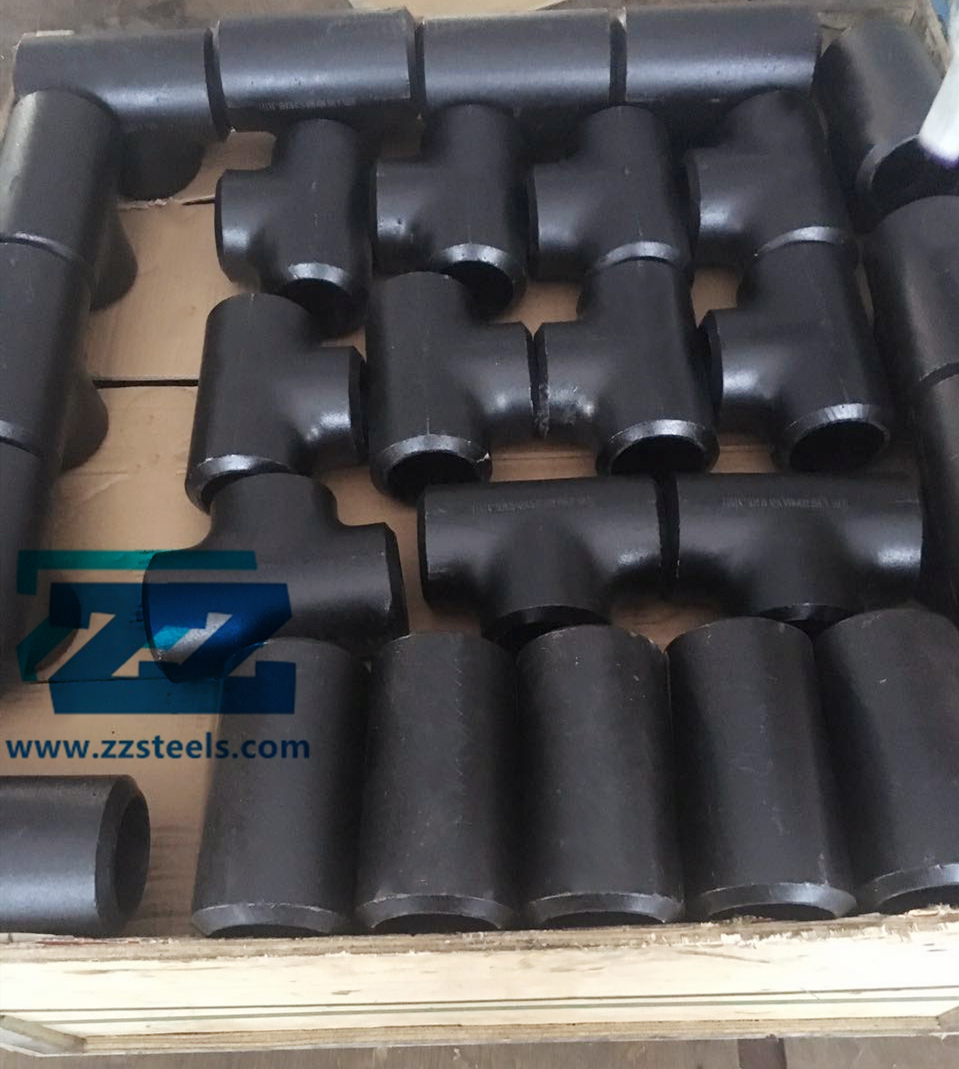

Carbon Steel Equal Tee Package

• For carbon steel equal tee larger than 16 inch: Tied them on Wooden Pallet.

Steel Pipe Tee Types

According to the connection way:

• Buttweld Tee, Socket Weld Tee, Threaded Tee

Based on the branches diameter:

• Equal Tee, Reducing Tee

According to  the feature of branches:

• Tee, Cross Tee, Lateral Tee

Based on the materials:

• Stainless Steel Tee, Carbon Steel Tee, Alloy Steel Tee, Duplex Steel Tee

The post 10″ Carbon Steel Tee appeared first on Supplier of Quality Forged Fittings-Flanges.

We are manufacturer of Stainless Steel Fittings and supplies PE Coated Pipe Tee DN150 SCH10S ASTM A403 WP316L BW for Malaysia Market. They are used for connecting 3PE Pipeline which under ground.

The External Polyethylene Coated SS316L Tees have the advantage of good antiseptic property, low water-absorption, and high mechanical strength. PE Anti-corrosive Elbows can be used to transfer water, gas and oil.

PE Coated Pipe Tee Dimensions

Size: DN150

Thickness: Sch 10s

End Type: BW

Technical: Seamless

Material: A403 WP316L

Standard: ASME B16.9

Stainless Steel Pipe Tee

Package

Put all DN150 Pipe Tee into free fumigation wooden cases.

Butt Weld Tee

Inspection

Inspecting SS316 Butt Weld Tee according to ASME B16.9 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

PE Coated Pipe Tee Inspection

Stainless Steel Pipe Fittings Dimensions

Stainless Steel PE Coated Pipe Tee

Surface Treatment

Pickling and Solution Heat Treatment

We will use cold wrapping on all Stainless Steel Butt Weld Fittings before delivery.

PE Coated Pipe Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand, Kazakhstan

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Jordan

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia

Oceania: Papua New Guinea, Australia, New Zealand, Solomon

Europe: Greece, UK, Poland, Ukraine, France, Spain, Italy, Ukraine

The post PE Coated Pipe Tee SS316 appeared first on Supplier of Quality Forged Fittings-Flanges.

Professional Stainless Steel Pipe Fittings Supplier Zizi Offer 8 Inch Sch 40s Seamless Equal Tee SS316 BW ASME B16.9 for Papua New Guinea. They are traveled with A403 WP304 Reducing Tee, A860 WPHY 52 90 Degree Elbow and A234 WPL 6 Concentric Reducer.

316 stainless steel pipe fittings have excellent corrosion resistance and demanded highly in chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills due to their versatility and excellent weld-ability.

Buttweld Fittings Dimensions

Butt Weld Tee

Package

Lining up the 8 Inch SS316 Equal Tee in free fumigation wooden pallet.

Stainless Steel Equal Tee

Surface Treatment

All stainless steel pipe tees are pickling, solution treatment and surfaced with plastic wrapping before delivery.

SS316 Equal Tee Dimensions

Size: 8 Inch

Thickness: Sch 40s

End Type: BW

Type: Seamless

Standard:  ASME B16.9

SS316 Equal Tee Dimensions

ASME B16.9 Butt Weld Fittings

Inspection

Inspecting stainless steel butt weld tee according to ASME B16.9 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

SS316 Equal Tee Chemical Composition

SS316 Equal Tee Mechanical Properties

Stainless Steel 316 Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia

Oceania: Papua New Guinea, Australia, New Zealand, Solomon

The post SS316 Seamless Equal Tee Exporter appeared first on Supplier of Quality Forged Fittings-Flanges.

Great manufacturer of carbon steel butt weld fittings and offer ASTM A234 WPB Seamless Tee Equal 4″ Sch 120 BW ASME B16.9  for Saudi Arabia.

A234 WPB Pipe Fittings are butt welding ends, commonly used to be welded with the Steel Pipes of A106, A53,GR.B,or API 5L GR.B material.

Zizi Engineering is one of the prominent stockist of carbon steel seamless pipe fittings and welded pipe fittings.

A234 WPB Seamless Tee Dimensions

Size: 4 Inch

Thickness: Sch 120

End Type: BW

Standard: ASME B16.9

ASME B16.9 Butt Weld Tee

Inspection

Inspecting Butt Weld Pipe Tee according to ASME B16.9 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASTM A234 WPB Chemical Composition

ASTM A234 WPB Mechanical Properties

Carbon Steel Pipe Tee

Surface Treatment

All carbon steel butt weld pipe tee are Normalized Treatment and surfaced with black primer before delivery.

ASTM A234 WPB Seamless Tee Package

Butt Weld Pipe Fittings Dimensions

Seamless Equal Tee

Package

Lining up the DN50 x 15 ASTM A234 WPB Seamless Tee in free fumigation wooden cases.

A234 Seamless Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia

Oceania: Papua New Guinea, Australia, New Zealand, Solomon

The post ASTM A234 WPB Seamless Tee Fitting appeared first on Supplier of Quality Forged Fittings-Flanges.

Quality manufacturer, supplier, exporter of Forged Steel Fittings and supplies 1/2 Inch ASTM A182 F316 / F316L SW Tee 3000# for Thailand.

These forged steel fittings are available in different size, pressure and material and manufactured in accordance with ASTM Specifications

There are many types of pipe fittings which are butt weld fittings, socket weld fittings and threaded fittings.

Product Types: Equal Tee, Reducing Tee, Cross Tee, 90 Degree Elbow, 45 Degree Elbow, Full Coupling, Half Coupling, Reducing Coupling, Socket Weld Cap and Union.

A182 F316 Socket Weld Tee Dimensions

Size: 1/2 Inch

Pressure: 3000#

Type: Equal

Standard: ASME B16.11

A182 F316 Socket Weld Tee Dimensions

ASTM A182 F316 Chemical Composition

ASTM A182 F316 Mechanical Properties

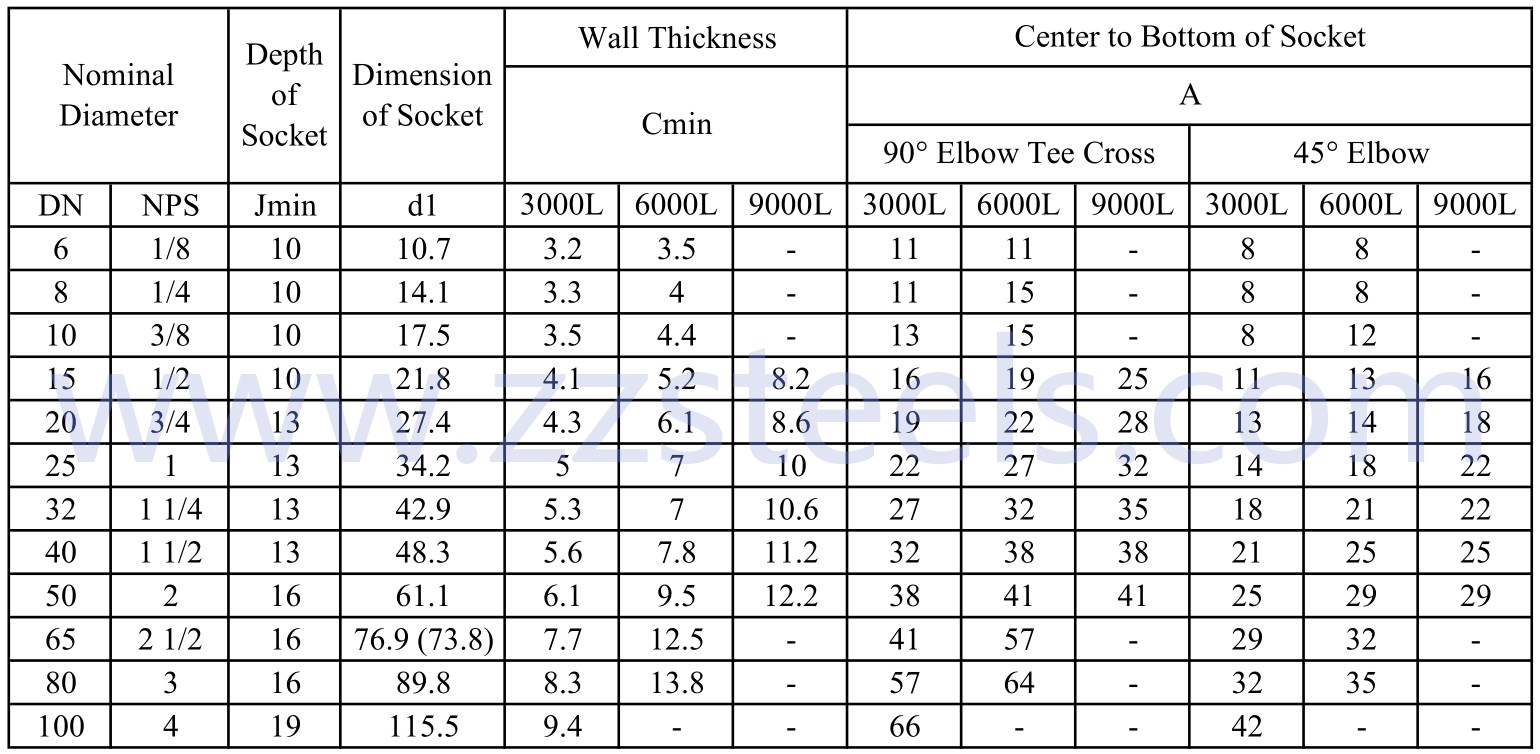

Socket Weld Fittings Dimension Chart

Straight Elbow Pipe Fittings

Surface Treatment

Pickling + Solution Treatment.

All Forged Socket Weld Straight Tees are surfaced with Anti-rust oil before delivery.

Stainless Steel Socket Weld Tee

Inspection

Inspect A182 F316 SW Tee according to ASME B16.11 Standard

Quality controller check the diameter, thickness, tolerance and marking

Third party inspection: BV, SGS, LR, DNV, ABS and approve inspection certificate

Socket Weld Tee Fittings

Package

We packed 1/2 Inch Socket Weld Equal Tee into carbons and make a list.

Forged Fittings and Flanges

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, 40HQ

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola

Middle East: Saudi Arabia, Qatar, Israel, Egypt

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador

Oceania: Papua New Guinea, Australia, New Zealand

Europe: Greece, UK, Poland, Ukraine, France, Spain

The post 1/2 Inch Tee 3000# SW A182-F316 appeared first on Supplier of Quality Forged Fittings-Flanges.

Quality manufacturer of carbon steel pipe fittings Zizi offer 16 Inch Sch 40 BW Equal Tee ASTM A234 WPB Seamless for power plant.

A234 WPB Pipe Fittings are butt welding ends, commonly used to be welded with the Steel Pipes of  ASTM A53 Gr B, A106B or API 5L B material.

Zizi Engineering is one of the prominent stockist of carbon steel seamless pipe fittings and welded pipe fittings.

A234 WPB BW Tee Dimensions

Size: 16 Inch

Thickness: Sch 40

Type: Seamless

End Type: BW

Standard: ASME B16.9

ASME B16.9 Butt Weld Tee

Inspection

Inspecting Butt Weld Pipe Tee according to ASME B36.19 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASTM A234 WPB Chemical Composition

ASTM A234 WPB Mechanical Properties

Carbon Steel A234 Tee

Surface Treatment

All carbon steel butt weld tees are normalizing heat treatment and surfaced with black primer before delivery.

A234 WPB BW Tee Surface

Butt Weld Pipe Fittings Dimensions

Seamless Pipe Tee

Package

Lining up the 6 Inch ASTM A234 WPB BW Elbow in free fumigation wooden cases.

ASTM A234 Pipe Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia

Oceania: Papua New Guinea, Australia, New Zealand, Solomon

The post ASTM A234 WPB BW Equal Tee appeared first on Supplier of Quality Forged Fittings-Flanges.

We are manufacturer of Threaded Tee and supplies NPT,BSPT,BSPP Tee in kinds of materials such as carbon steel, stainless steel, alloy steel.

Feature

Pressure: 2000LB, 3000LB, 6000LB
Thickness: Sch80, Sch160, SchXXS
Size: from 1/4″ to 4″ (DN6-DN100)
Threads: NPT, NPTF, NPSC, NPSM, NGT, SAE, BSPT, BSPP
Material: Carbon Steel, Stainless Steel, Alloy Steel
Standard: ANSI B16.11,GB/T 14626,BS3799
Finish:Galvanized or Black, PE and Pickled.

The post Threaded Tee appeared first on Supplier of Quality Forged Fittings-Flanges.

We are manufacturer of Socket Welding Tee and supplies Class 3000, 6000,9000 Tee in kinds of materials such as carbon steel, stainless steel, alloy steel.

Socket weld is a pipe connection way which the pipe is inserted into a recessed area of a pipe fitting or flange. It mainly appears in small diameter pipe system which are 4 inch or smaller. And in this conditions, it can provide high leakage integrity and great structural strength. The fatigue resistance is lower than butt weld construction.

Equal Tee

Equal tee is the basic tee type. It has three outlet in the same size, the branch outlet forms a 90 degree angle form the run pipe. In another word, it provides a 90 degree branch form the main pipe.

Equal Tee

Socket Weld Tee Reducer

Socket weld tee reducer (or reducing tee) has a smaller diameter branch outlet that used to connect a smaller pipe branch.

Reducing Tee

ASME B16.11 Socket Weld Tee

Zizi provided forged steel socket weld fittings in different sizes and materials. They are made according to ASME, EN, DIN, JIS or other specification standards based on the demands of customers, but their dimension range is still the same.

Socket Weld Tee Feature

socket weld fittings dimensions

Socket Weld Fittings Material

Stainless Steel

ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347,

Carbon Steel

ASTM/ ASME A 105, ASTM/ ASME A 350 LF2

Alloy Steel

ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91

Nickel & Copper Steel

NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276, C 70600, C71500

Marking & Package of Forged Tee Fittings

Marking

The marking will cover the size, pressure, product type, material, manufacture standard and heat No. of socket weld tee. Such as ” 1″ 6000# SW A105 B16.11 2047 “, some of them are shorted due to the limited space.

1″ Class 6000 SW Tee

Package

To ensure the good condition of socket weld fittings when delivery, we will take attentive package.

No matter what the material is, each product will be protected by anti rust oil and plastic bag, then placed in carton box and wooden case. Box and cases have labels on the outside for easy indentification.

Manufacturer of Forged Steel Pipe Fittings

1. Are you the factory or the trading company?

Zizi is steel pipe fittings manufacturer, we have our own factory in Hebei, China.

1. When can I get the quotation?

Within 24 hours after your inquiry.

1. Do you provide samples? Is it free or extra?

Offer sample for free charge but do not pay the cost of freight

The post Socket Weld Tee appeared first on Supplier of Quality Forged Fittings-Flanges.
