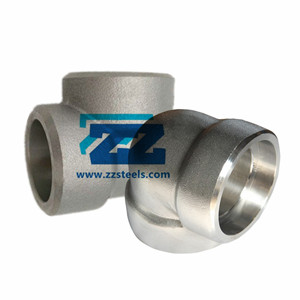

1” Socket Weld Elbow 90º
Duplex Steel Forged Fittings
Best Price for 1” Socket Weld Elbow 90 Degree Class 3000 Duplex Steel ASTM A182 F51, Zizi offers extensive dimensions for duplex steel forged fittings.
Duplex steel elbow has high strength and toughness, excellent corrosion resistance and good ability to withstand high pressure and temperature. Their great performance makes it largely used in diverse industries such as chemical, oil, gas, power plant and seawater equipment.
Zizi is manufacturer of forged steel pipe fittings and our products covers butt weld fittings, socket weld fittings and threaded fittings for material stainless steel, carbon steel and alloy steel.
Shipment of 1” Socket Weld Elbow
Product: 90 degree socket weld elbow
Size: 1” class 3000
Material: ASTM A182 F51
Quantity: 382 PCS
Surface: Pickled, Anti rust oil
Package: Plastic bag, carton box and wooden cases for 1″ SOCKET WELD ELBOW
Lead Time: 10 days

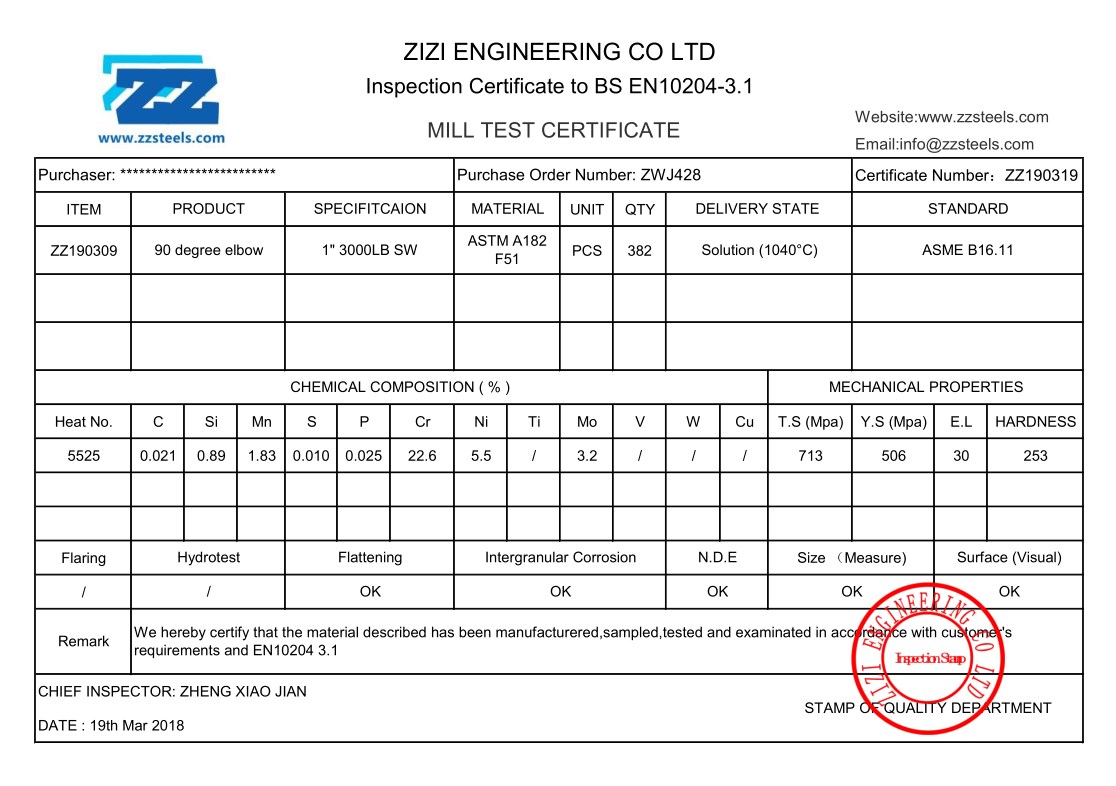

Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
1″ Socket Weld Elbow Dimensions
Inspection of Class 3000 1” Socket Weld Elbow
- Marking: Covers item name, size, pressure, material and lot No..
- Surface: Hand Touch and eyes check.
- Dimension: Measure and Compare with tolerance.
- Third Party Inspection: Third party could be BV, SGS, LR, DNV, ABS.
Socket Weld Elbow Dimensions
| Standard | ASME/ANSI B16.11, BS3799 |
|---|---|
| Angle | 45 degree, 90 degree or as customer require |
| Diameter | 1/8”, 1/4”, 3/8”, 1/2” 3/4” 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”, 4” |
| Pressure | 3000lb, 6000lb, 9000lb |
| Stainless Steel Socket Weld Elbow | ASTM A182 F304, F304L, F306, F316L, F309S, F310S, F317, F321, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Duplex Steel 1” Socket Weld Elbow | ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Carbon Steel Socket Weld Elbow | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Socket Weld Elbow Alloy Steel | ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91, Nickel alloy, Copper Alloy |
How to Calculate the Weight of 90 Degree Elbow?
Socket Weld 90 Degree Elbow Weight
Application Industry
- Petroleum
- Chemical
- Gas
- Sea Water Equipment
- Heat Exchangers
- Off-Shore Oil Drilling Companies
- Power Generation
Duplex Steel A180 F51 Properties
ASTM A182 F51 Chemical Composition
| C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 2 | 1 | 0.03 | 0.02 | 21-23 | 4.5-6.5 | 2.5-3.5 |
ASTM A182 F51 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 620 (Mpa) | 450 (Mpa) | 25 (%) |
