A53 Gr B ERW Pipe

We are manufacturer of Pipe and providing ERW Pipe ASTM A53 GR B/ API 5L B 16″ X Sch40 X12M for Nigeria.

A53 Gr B pipe suits for most ordinary application such as water, gas, oil, steam and air pipeline. ERW pipe refers to electric resistance welded pipe and usually provided with black or hot dipped galvanized coating.

Zizi is manufacturer and supplier of carbon steel pipes, we have large inventory of A53 and A106 B pipes in verious dimensions.

Carbon Steel A53 Pipe Features

Size: 16″ Sch40

Length: 12M

Type: ERW

Material:ASTM A53 GR B/API 5L B

Lead Time: 10 Days are ready for shipping

Shipment: LCL, 20GP, 40GP, Air, Courier

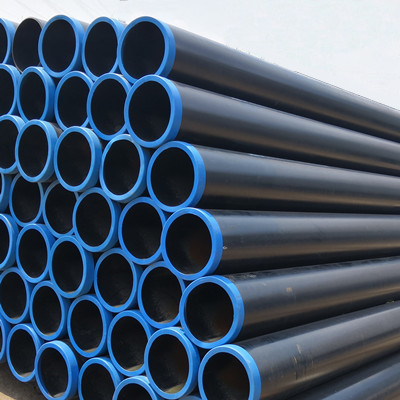

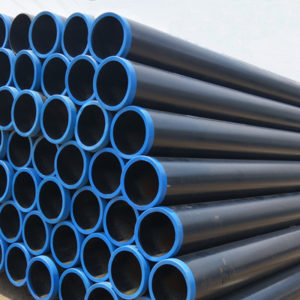

ASTM A53 ERW Pipe

A53 ERW Pipe

A53 ERW Pipe Chemical Composition, %

A53 ERW Pipe Mechanical Properties

Carbon Steel Pipe Supply Range

With an extensive and diverse carbon steel inventory, we carry a wide range of carbon steel pipes in a variety of sizes and pressure ratings to meet your needs.

Diameter: NPS 1/8” TO 26” A53 Gr B Pipe

Schedule: Sch10 through 160 STD XXS.

Length: Single Random, Double Random, Cut Length

Type: Seamless, Continuous Weld (CW), Electric Resistance Weld (A53 ERW Pipe), Double Submerged Arc Weld (DSAW), Pressure Tubing

Material: API 5L, ASTM A53 GR B, A106 B, A105, SA210, A333 GR 3, API 5L Grade X42 /46 /52 /56 /60 /70, Q345E, Q235 and any other standard-compliant carbon steel materials

16 Inch Carbon Steel Pipe Inspection

Surface

Require marking on each length. The marking should be ” PIPE 16″ Sch40 12M A53 Gr B ERW”

Supplied with Black Primer and protect cap at both end.

Check the appearance for dents, dents, stomata, undercut.

Dimensions

Measure the diameter, thickness and length of A53 ERW Pipe and make sure they are in tolerance.

Material

Inspection for A53 ERW Pipe including the chemical composition and mechanical propetries.

Other test: Mechanical properties Test, Hydrostatic test, Bend test, Flattening test

Third Party Ispection

BV, SGS, LR, DNV, ABS

Certificate

CE, ISO, TEST REPORT, Stamp mill test certificate

A53 Gr B VS A106

Both as carbon steel, A106 B and A53 B are similar in chemical makeup and manufacture. But their differences are few but important.

1. Welded and Seamless Pipes

A106 must be seamless pipe while A53 can be seamless or welded.

2. Application

A53 ERW Pipe suits for transport of air, water, steam and oil in low and medium pressure applications. A106 pipe is commonly used for high temperature and high pressure service in power generation applications.

3. Chemical Composition

Though their chemical makeup are very similar, but there are still some difference. The most noteworthy difference is the presence of silicon in A106 pipe but not exit in A53.
