Diverse dimension options for forged pipe fittings, we store massive 3/4” , 1”, 2” socket weld cap in pressure 3000LB, 6000LB and 9000LB.

Socket Weld Caps are usually used in small diameter pipelines with high demands on the joint. The strength of socket welding joint is similar to butt weld on and more convenient to operate. The function of pipe caps are similar with threaded plugs and blind flanges.

Zizi is ISO certified manufacturer of forged steel pipe fittings, we can produce socket weld fittings according to ASME, BS, DIN, JIS , GB/T standards or as customer required. In most cases their diameter is no more than 4 inches.

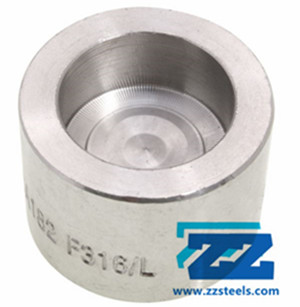

2” Socket Weld Cap Specification

Diameter: 2 Inch / DN50

Pressure: 3000LB

Material: Stainless Steel ASTM A182 F316

Standard: ASME B16.11

Socket Weld Cap Dimensions

Material for Forged Steel Pipe Cap

Stainless Steel for 2″ SW Cap: ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347

Carbon Steel: ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70

Alloy Steel : ASTM A182 F1, F5, F9, F11, F12, F22, F91

Duplex Steel: ASTM A182 F51, F53, F55, F60

Weight of Socket Weld Pipe Cap

Specification for Socket Weld Pipe Fittings

Standard	ASME B16.11, GB/T14383, SH3410, HG/T21634, JIS B2316, BS 3799
Diameter	1/8”, 1/4”, 3/8”, 1/2” 3/4” 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”, 4”
Pressure	3000lb, 6000lb, 9000lb
Products	90 Degree Elbow, 45 Degree Elbow, Tee, Lateral Tee, Cross, Socket Weld Cap, Full Coupling, Half Coupling

Package of 2” Socket Weld Cap

1. Lettering “2” SW 3000# ASTM A182 F316 ASME B16.11” on the surface
2. Applying anti-rust oil at the surface
3. Put them into plastic bags
4. Pack them into carton cases and wooden box
5. Attach label for easy identify

Features of Stainless Steel Forged Fittings

Stainless Steel SW Cap has:

1. Beautiful appearance
2. Fine micro-structure
3. Excellent mechanical properties
4. High corrosion resistance
5. Long service life
