3″ Threaded Pipe Cap Class 3000
Forged Steel Pipe Caps
China leading forged pipe fittings manufacturer Zizi supplies 3″ NPT Threaded Pipe Cap Class 3000 ASTM A182 F11 ASME B16.11 for Uruguay in best price.
Threaded pipe cap is covered at the end of pipes and block off the flow. It is suitable for small diameter pipe system with low pressure. As a forged steel pipe fitting, it has good quality and beautiful appearance.
For the purpose of supplying you best quality products, each stage of production process is under strict supervision. 3 inch threaded cap is examined conformity to ASME B16.11. And we also offer official certification for the material reports, dimensions and quality conformity of products as request.
3” Threaded Pipe Cap Dimensions
| Standard | ASME B16.11, BS3799, GB/T14383, SH3410, HG/T21634, JIS B2316 |
|---|---|
| Diameter | 1/8”, 1/4”, 3/8”, 1/2” 3/4” 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”, 4” |
| Pressure Rating | 3000LB, 6000LB Threaded Pipe Cap |
| Thread Type | NPT, BSPP, BSPT, PT, GI |
Threaded Cap NPT Shipment

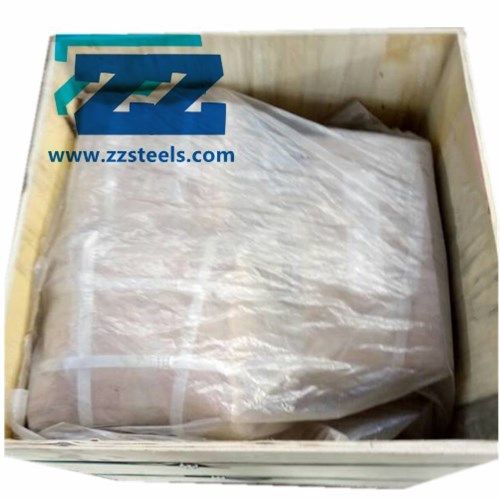

Package of Forged Steel Caps
Size: 3” 3000LB Threaded Pipe Cap
Thread Type: NPT
Material: Alloy steel ASTM A182 F11 CL2
Standard: ASME B16.11
Quantity: 273 pcs
Package: Anti-rust oil, plastic bag, carton box and wooden case.
Lead Time: 7 days are ready for shipping
Delivery Port: Shanghai, Tianjin, Qingdao
Documents: CI, PL, CO, BL, MTC for 3″ Threaded Pipe Cap
Certificate: CE, ISO, TEST REPORT
Threaded Pipe Cap Weight

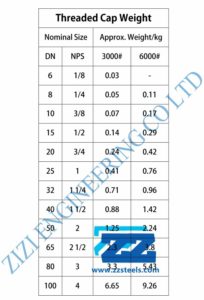

Threaded Cap Weight Chart
Material Grades for 3” Threaded Pipe Cap
Stainless Steel Threaded Pipe Cap
ASTM A182 F304, F316, F310, F321, F309, F317
Carbon Steel Threaded Pipe Cap
ASME A105, A350 LF/LF3, A106 A/B/C, API 5L, API 5L GR. B, API 5L

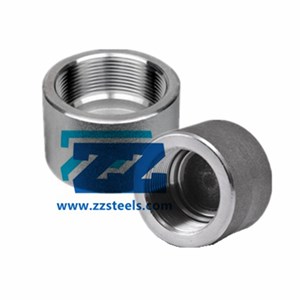

Alloy Steel Threaded Pipe Cap
ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Threaded Pipe Cap
ASTM A182 F51, F53, F55 / UNS S31803, S32205, S32550, S32750, S32950
Advantages of Forged Steel Pipe Fittings
- Beautiful appearance
- Fine Micro-structure
- High Mechanical Properties
- Long Service Life
Application of Steel Pipe Caps
- Gas Processing
- Power Generation
- Petrochemicals
- Chemical Equipment
Alloy Steel ASTM A182 F11 Properties
Chemical Composition
| A182 F11 | C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| Class 1 | 0.05-01.15 | 0.3-0.6 | 0.03 | 0.03 | 0.5-1 | 1-1.5 | 0.44-0.65 |
| Class 2 | 0.1-0.2 | 0.3-0.8 | 0.04 | 0.04 | 0.5-1 | 1-1.5 | 0.44-0.65 |
| Class 3 | 0.1-0.2 | 0.3-0.8 | 0.04 | 0.04 | 0.5-1 | 1-1.5 | 0.44-0.65 |
Mechanical Properties
| A182 F11 | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| Cl1 | 415 | 205 | 20 |
| Cl2 | 485 | 275 | 20 |
| Cl3 | 515 | 310 | 20 |
Order Enquiry Form

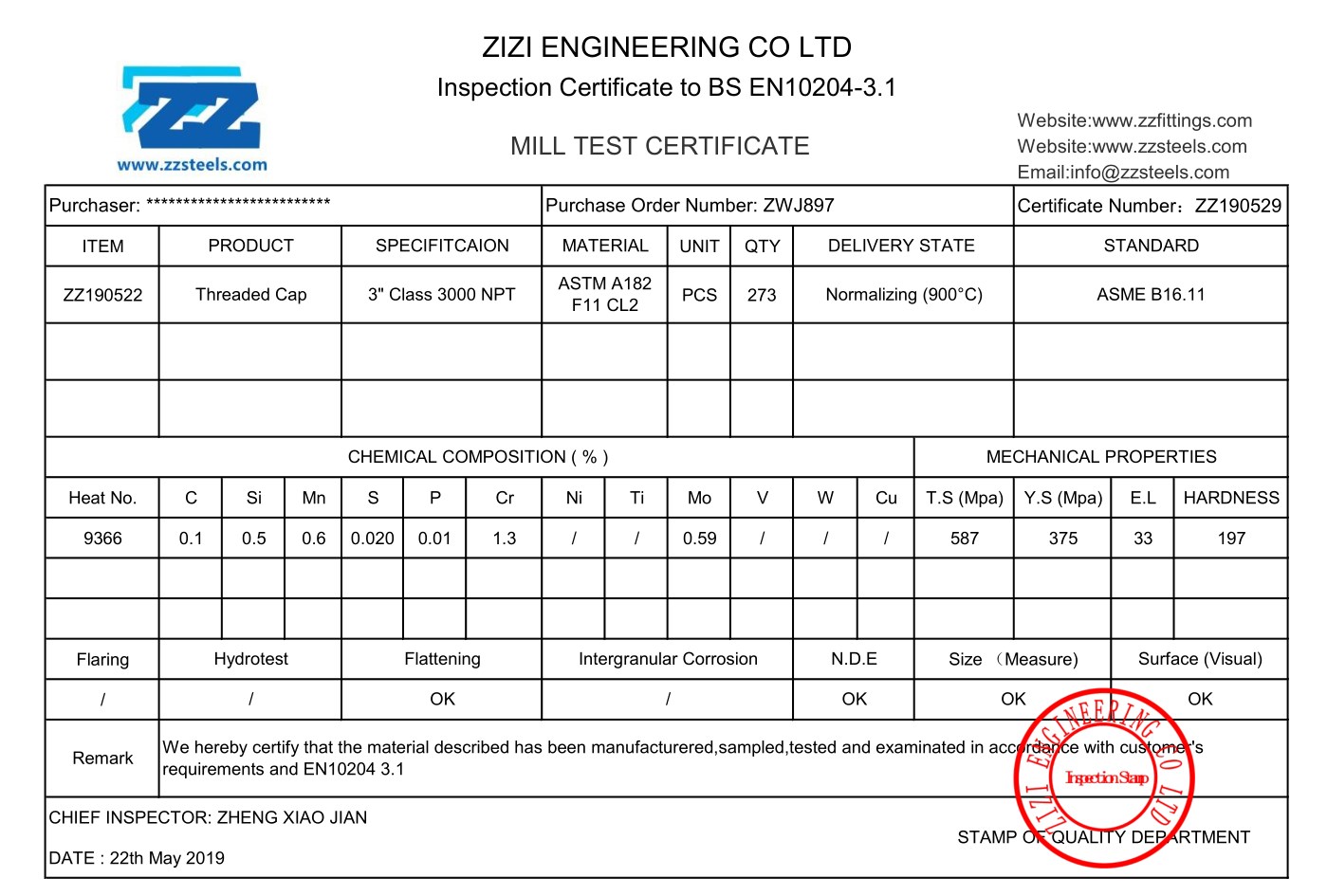

3 Inch Class 3000 NPT Cap MTC
