A105 Socket Weld Elbow Galvanized

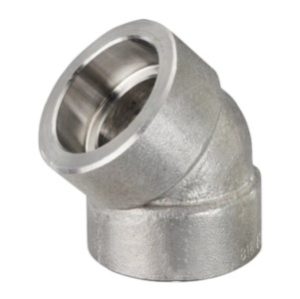

Galvanized Socket Weld Elbow
Zizi Engineering is one of the prominent exporter and Stockiest of Forged Steel Fittings and supplying 45 Degree Elbow DN40 SW 3000lb Galvanized ASTM A105 ASME B16.11 for South Africa.
It means a pipe is inserted into a recessed area of a Pipe Elbow. Socket Weld Elbow are mainly used for small pipe diameters (Small Bore Piping) in contrast to Butt Weld Fittings. Generally for piping whose nominal diameter is NPS 4 or smaller.
45 Degree Elbow Dimensions
Size: 1 1/2 Inch
Pressure: 3000lb
End Type: SW
Material: ASTM A105
Technics: Forged Fittings
Exw Price: $8/pcs
Socket Weld Fittings Dimensions
Socket Weld Fittings
| Standard | ASME/ANSI B16.11, BS3799, MSS SP-95 |
|---|---|
| Diameter | 1/8 to 4 inch / DN6-DN100 |
| Pressure | 3000lb, 6000lb, 9000lb |
| Product | 90 Degree Socket Weld Elbow,Socket Weld 45 Degree Elbow, Forged Equal Tee, Forged Cap,Socket Weld Coupling, Socket Weld Union |
| Stainless Steel | ASTM A182 F316/316L, F304/304L, SS310, SS321 |
| Duplex Steel | ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760 |
| Carbon Steel | ASTM A105N, A350 LF2/LF3 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22,F91 |
A105 Socket Weld Elbow Chemical Composition
| C | Mn | P | S | Si |
|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 |
A105 Socket Weld Elbow Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
45 Degree Socket Weld Elbow Surface
Normalizing Heat Treatment or Pickling + Solution Treatment.
We will use Anti-rust oil on all Forged Steel Fittings and 45 Degree Socket Weld Elbow before delivery.
ASME B16.11 Elbow Inspection
A105 Socket Weld Elbow
Inspect A105 Socket Weld Elbow according to ASME B16.11 Standard
QA/ QC person visual surface, marking and measure size
Third party inspection: BV, SGS, LR, DNV, ABS
DN40 Elbow A105 Package
Put the DN40 Elbow in environmental poly bags and pack into free fumigation wooden cases
Galvanized Socket Weld Fittings for Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 7 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Forged Steel Fittings Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia
Africa: Nigeria, Madagascar,Ghana, Kenya
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
ASTM A105 PROPERTIES
Chemical Composition
| C | Mn | P | S | Si |
|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
