Steel Pipe Bend

Zizi exports carbon steel pipe fittings 12” Sch 40 3D 45 Degree Pipe Bend ASTM A234 WPB to Australia with best quality and attractive price.

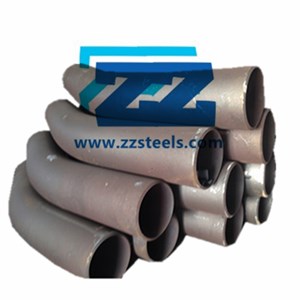

Steel pipe bend has the same function with elbow that change the direction of pipelines. Pipe bend is only available in buttweld type so that it is usually made by cold bend or hot heating. The difference between buttweld bend and buttweld elbow is the length and radius. R means the radius of bend, the larger R is, the smoother the flow is. Generally speaking, radius of pipe bend are larger than 1.5D.

Zizi is ISO certified manufacturer of steel pipe fittings and we supply buttweld fittings including 90 Degree Elbow, 45 Degree Elbow, 180 Degree Elbow. Steel Bend. Equal Tee, Reducing Tee, Pipe Cap, Concentric Reducer, Eccentric Reducer and Stub End.

Order of 45 Degree Pipe Bend

Item: 45 Degree Bend

Size: 12” Sch 40

Radius: R = 3D

End: Plain End

Type: Seamless

Material: ASTM A234 WPB

Coating: Black Primer

Standard: ASME B16.9 45° Pipe Bend

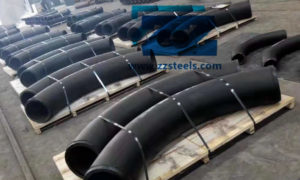

Shipment of Carbon Steel Pipe Bends

Package

Wooden Pallet for 12” pipe bends.

Lead Time

12 Days are ready for shipping

Shipment

LCL, 20GP, 40GP, Air, Courier

Delivery Port

Shanghai, Tianjin, Qingdao

Document

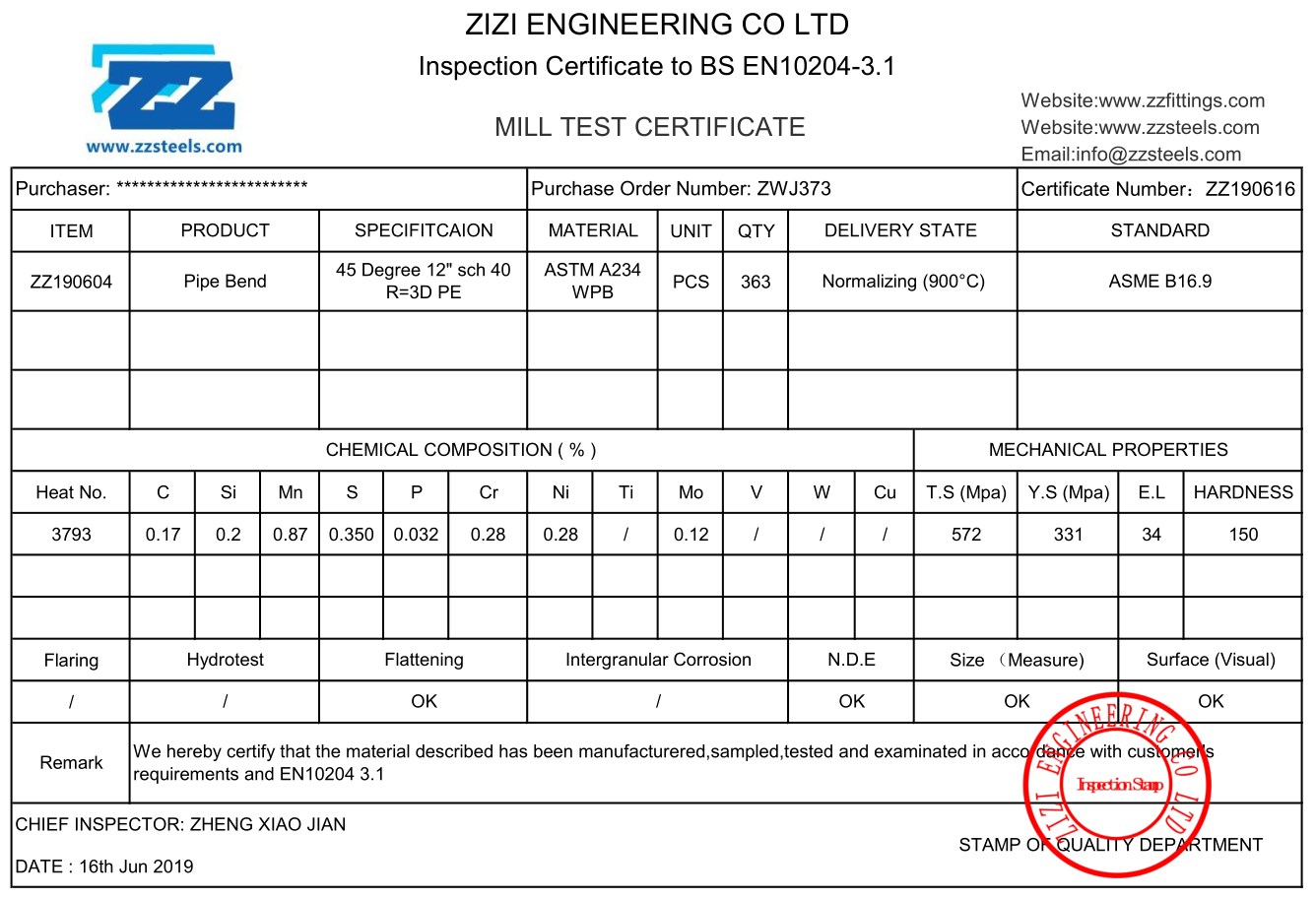

CI, PL, CO, BL, MTC for Carbon Steel 45° Bend

Certificate

CE, ISO, TEST REPORT

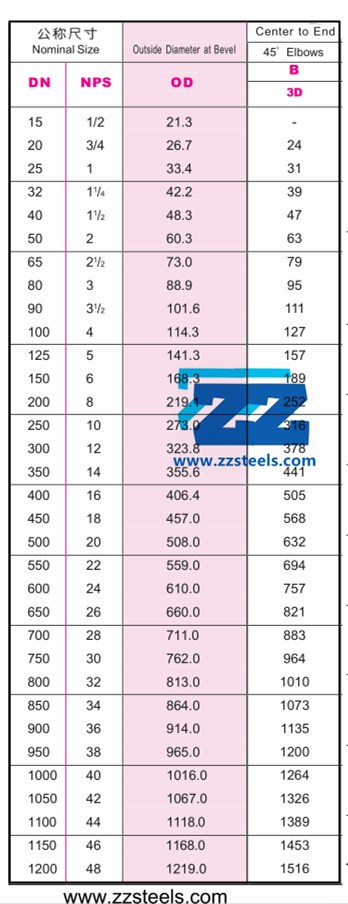

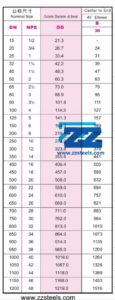

Dimensions of 45 Degree Pipe Bend

Standard	ASME B16.9 45° Bend
Diameter	DN20 to DN1500/ 3/4″ to 60”
Wall Thickness	Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS
Radius	R=1.5D, 3D, 5D, 10D… or as costumer required
End	PE, BE / Plain End, Beveled End
Type	Seamless and Welded 45 Degree Pipe Bend

Material for Buttweld Pipe Fittings

Carbon Steel 45° Pipe Bend

ASTM A234 WPB, A106B, A860 WPHY42, 52, 60, 65, 70, A420 WPL 3 / 6 / 9

Stainless Steel 45° Pipe Bend

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP309, WP347

Nickel Alloy 45° Pipe Bend

ASTM / ASME SB 336, SB 564 UNS2200 (NICKEL 200) , UNS2201 (NICKEL 201 ) , UNS4400 (MONEL 400 ), UNS6600 (INCONEL 600 ) , UNS6601 (INCONEL 601) , UNS6625 (INCONEL 625) , UNS10276 (HASTELLOY C 276)

Copper Alloy 45° Pipe Bend

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500

45 Degree 3D Bend Weight Formula

0.0433 x (D-T) x T x R x θ / 100000 + L

• D = Outside Diameter
• T = Thickness
• R = Bend Radius
• θ = Bend Angle
• L =  Weight of Double Sides Straight Length

Application of Steel Pipe Bend

45° pipe bend is more suitable for low pressure pipe system with slow liquids.

• Oil and Gas Pipeline
• Chemical Equipment
• Pulp and Paper Industry
• Power Generation
