SS316 Short Radius Elbow 90 Degree
Stainless Steel Pipe Fittings
Distributor and Exporter of Stainless Steel Pipe Fittings Zizi offer SS316 Short Radius Elbow 90 Degree 6 Inch Sch40s BW ASME B16.9 for Oman.
316 stainless steel pipe fittings have excellent corrosion resistance and demanded highly in chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills due to their versatility and excellent weld-ability.
Buttweld Fittings Dimensions
| Standard | ASME B16.9 |
|---|---|
| Diameter | DN20 to DN1500/ 3/4” to 60” |
| Schedule | Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS |
| Type | Seamless, Weld and Fabricated |
| Product | 90 Degree Elbow, Long Radius Elbow, Equal Tee, Reducing Tee, Butt Weld Reducer, Stud End, Pipe Cap, SS316 Short Radius Elbow |
| Stainless Steel | ASTM A403 WP304/304L, 316/316L, SS321, 310S, 317,347 |
| Duplex Steel | ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760 |
| Carbon Steel | ASTM A234 WPB, A420 WPL3,WPL6, WPL9, WPHY42, WHPY52, WPHY60, WHPY65, WPHY70. |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
Threaded FlangeElbow
Package
Lining up the 6 Inch SS316 Short Radius Elbow in free fumigation wooden pallet.
Stainless Steel Pipe Elbow
Surface Treatment
All stainless steel pipe elbows are pickling, solution treatment and surfaced with plastic wrapping before delivery.

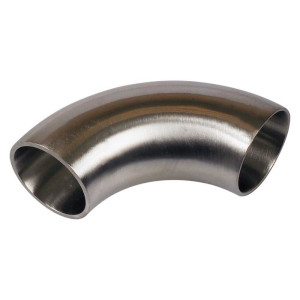

SS316 Short Radius Elbow Dimensions
Size: 6 Inch
Thickness: Sch 40s
Type: Short Radius
End Type: BW
Technical: Seamless
Material: SS316
Standard: ASME B16.9
Exw Price: $70/pcs
SS316 Short Radius Elbow Dimensions
ASME B16.9 Butt Weld Fittings
Inspection
Inspecting stainless steel butt weld elbow according to ASME B16.9 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
SS316 Short Radius Elbow Chemical Composition
| C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.03 | 2 | 1 | 0.04 | 0.03 | 16-18 | 10-14 |
SS316 Short Radius Elbow Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 30 (%) |
Stainless Steel 316 Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, India, Indonesia, Malaysia, Thailand
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Mauritius, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia
Oceania: Papua New Guinea, Australia, New Zealand, Solomon
