6 Inch A312 TP316 Seamless Pipe
A312 TP316 Seamless Pipe

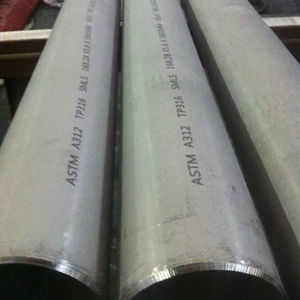

We are manufacturer of A312 TP316 Seamless Pipe and providing ASTM A312 TP316 Seamless Pipe BE 168.3 x 5.6mm x 5.8m Length for Tema.
Stainless steel seamless pipe are high strength, great leak-proof and excellent corrosion resistance, it is very durable and commonly applied in corrosion environments.
Zizi is professional manufacturer and exporter, we have more than 9 years experience for steel pipe production, can supply A312 pipes in any sizes and thickness. No matter large or small quantity, we supply the best price for every client.
6″ Seamless Pipe Specification
Size: 168.3 x 5.6mm
Length: 5.8m
Type: Seamless
End Type: Beveled
Material: A312 TP316
Options for Dimensions
Size: 1/2” to 48”
Thickness: Sch 10S, 40, STD, 80, XS, 100, 120, 140, 160, XXS
Length: Single Random, Double Random, Cut Length
Type：Seamless & Welded ASTM A312 Pipe
End: Plain, Beveled
Materials Grades for Stainless Steel Pipe
ASTM A312, A358, A269, A270
TP304/304L/304H, 316/316L/316H, 309, 310, 317, 321, 347
Features
- Non-corrosive
- High tensile strength
- Dimensional accuracy

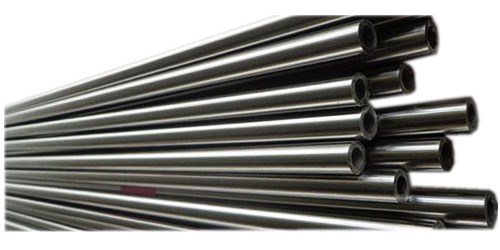

SS316 Seamless pipe
A312 TP316 Pipe
Stainless Steel 316 Grades Specification
| Standard | UNS | BS | WERKSTOFF NP. | JIS |
|---|---|---|---|---|
| SS316 | S31600 | 316S31/ 316S33 | 1.4401 / 1.4436 | SUS 316 |
ASTM A312 Pipe TP316 Chemical Composition
| C | Mn | Si | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|
| 0.08 | 2 | 0.75 | 0.045 | 0.03 | 10-14 | 16-18 | 2-3 |
SS316 Pipe Mechanical Properties
| Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|
| 515 MPa | 205 MPa | 40 % | 217 HB |
ASTM A312 Pipe Heat Treatment
Solution Treatment (Annealing) – Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.
Stainless Steel Seamless Pipe Inspection
The inspection is operated under the guidance of ASTM A312
- Photometer test the chemical composition
Stainless Steel Pipe

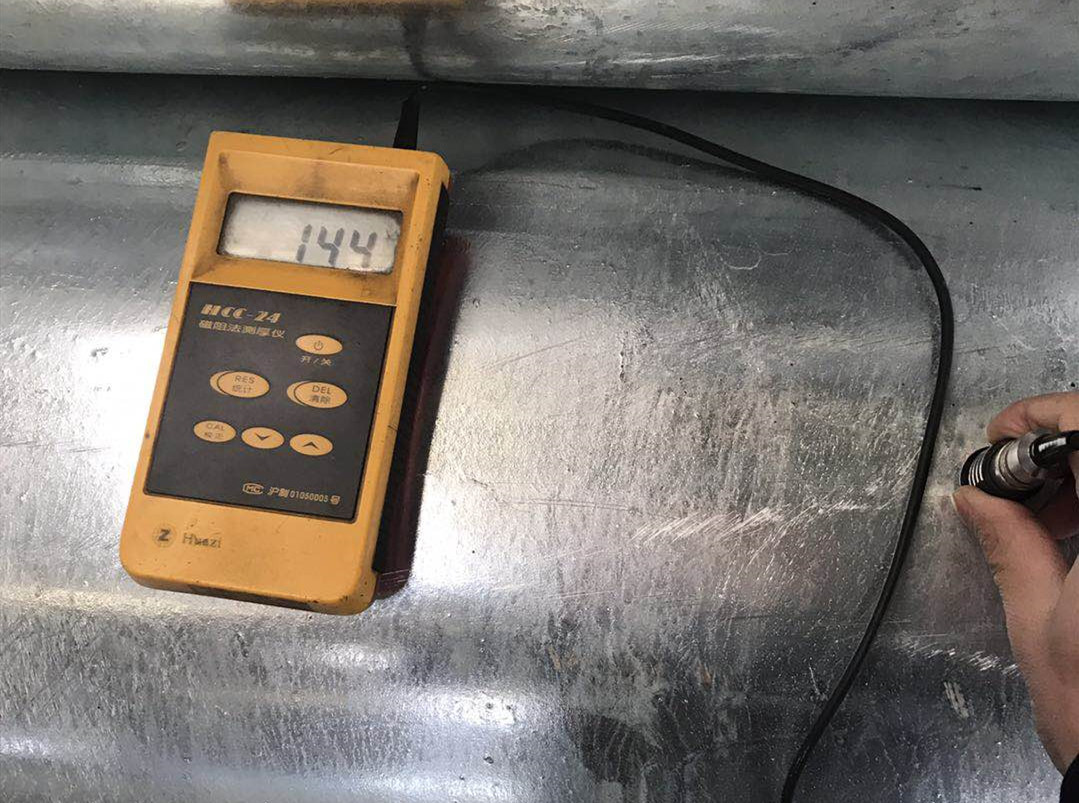

2. Measure the diameter, thickness and length.
3. Check the surface, including the appearance and the marking.
4. Taking tests to ensure the quality, such as
- Hydrostatic test
- Bend test:
- Flattening test
ASTM A312 Seamless Pipe
Product Range
Abundant A312 TP316 / TP316L / TP316H seamless pipes in stock, they are available in various size and thickness. The length will be cut as your demand. We can also produce A312 stainless steel pipes as customer requirement.
Package
Bare Package, Bundle Package, Wooden Cases, Wooden Pallet, Protection at both sides of pipes.
Lead Time
Based on the total quantity, usually are 10-15 days are ready for shipping.
Certificate
We offer various certificate to guarantee the quality. We can ofer CE, ISO, TEST REPORT, Stamp mill test certificate, and also provide thrid party inspection report as request.
Third Party Inspection
BV, SGS, LR, DNV, ABS
