ASTM A105 Threaded Flange Class 150
Carbon Steel Flanges and Fittings
Good price and quality by ISO certified carbon steel flange manufacturer which offer 4 Inch ASTM A105 Threaded Flange RF Sch 160 Class 150 for Malaysia.
We produced Carbon Steel Industrial Flanges in different size for customers, and we are certified to cater to the challenging requisites of a number of industries through our outstanding products and attentive services.
It is often used for small diameter, the advantages of easy installation and maintenance which suitable for somewhere are not allowed to welding.

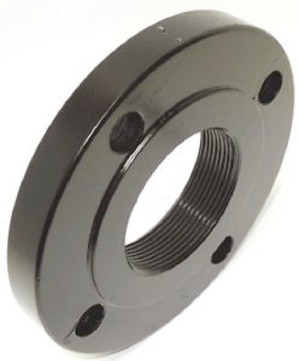

ASTM A105 Threaded Flange Dimensions
Size: 4 inch
Pressure: Class 150
Seal Type: Raised Face
Seal Thickness: Sch 160
Standard: ASME B16.5
ASTM A105 Threaded Flange Dimensions
ASME B16.5 Forged Flanges Manufacturing
Inspection
Inspecting Carbon Steel Forged Pipe Flange according to ASME B16.5 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A105 Chemical Composition
| C | Mn | P | S | Si |
|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 |
ASTM A105 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
Carbon Steel A105 Industrial Flanges
Surface Treatment
All carbon steel forged flanges are normalizing heat treatment and surfaced with anti rust oil or black primer before delivery.
ANSI Flange Dimensions
| Standard | ASME B16.5, API 5A |
|---|---|
| Diameter Range | 1/2 to 24 inch / DN15-DN600 |
| Pressure Rate | Class 150, 300, 600, 900, 1500, 2500 |
| Product | Slip On Flange, Threaded Flange, Socket Weld Flange, Blind Flange, Lap Joint Flange, Weld Neck Flange. |
| Stainless Steel | ASTM A182 F316, F316L, F304/304L, SS317, SS321, SS310 |
| Duplex Steel | ASTM A182 F51, F53, F55 |
| Carbon Steel | ASTM A105, A350 LF2/LF3. A694 F60, F65, F70, F52 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22 ,F91 |
Pipe Flange 4 Inch
Package
Packed 4 Inch ASTM A105 Threaded Flanges Fittings into wooden case.
Carbon Steel Flanges Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola , Tanzania, South Africa.
Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Yemen, Jordan, Lebanon.
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay
Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.
Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden
