ASTM A105 Half Coupling Manufacturer
Half Coupling Definition
Forged Pipe Half Couplings Manufacturer is offering ASTM A105 Half Coupling 2″ BSPP 3000# at USD4/pc for Ho Chi Minh with lead time 7 days.They are combined with A105 Threaded Union and SS316 90 Degree Forged Elbow.
Half-couplings are only threaded at one end. The other end is welded or otherwise fastened to the piping. There are two types of Carbon Steel Pipe Coupling that ASTM A105 Full Coupling and A105 Half Coupling.
They are manufactured, tested and certified in accordance with ASME 3A-105N and ASTM A105N Normalized. Forged Carbon Steel Fittings dimensions listed are either minimums or set by the factory per ASME B16.11
ASTM A105 Half Coupling Dimension
Exw Price: $4/pc
Size: 2 Inch Half Coupling
Pressure: 3000#
Thread Type: BSPP
Standard: ASME B16.11
Technics: Forged Carbon Steel Fittings
ASTM A105 Chemical Composition
| C | Mn | P | S | Si |
|---|---|---|---|---|
| 0.15 max | 0.6-1.05 | 0.035 | 0.04 | 0.1 min |
ASTM A105 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
Forged Threaded Pipe Fittings
| Standard | ASME/ANSI B16.11 |
|---|---|
| Diameter Range | 1/8 to 4 Inch / DN6-DN100 |
| Pressure Rate | 3000lb, 6000lb, 9000lb |
| Threaded Fittings Types | Forged Elbow, ASTM A105 Coupling , Equal Tee , Threaded Bushing, Cap, Plug, Union, Swage Nipple, Reducing Tee, |
| Thread Types | NPT, BSPP, BSPT |
| Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
| Carbon Steel | A105N, A350 LF2/LF3,A694 F52, F60, F65, F70 |
| Alloy Steel | A182 F1, F5, F9, F11, F12, F22, F91 |
A105 Half Coupling Fittings
Surface Treatment
Normalizing Treatment or Pickling + Solution Treatment.
We will use Anti-rust oil on all Forged Couplings before delivery.
Forged 3000LB BSP Half Coupling

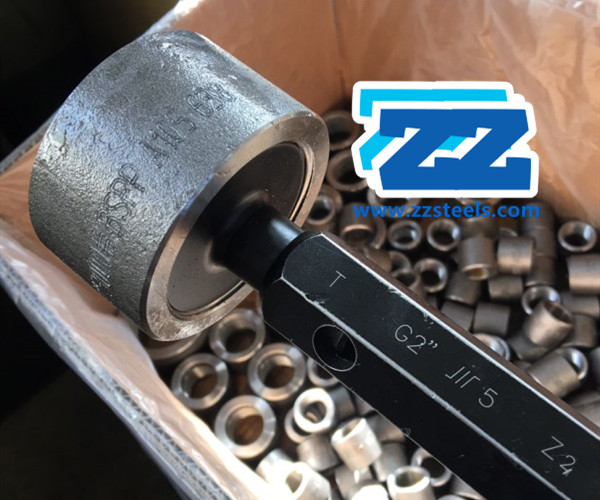

Inspection
Inspect Carbon Steel Threaded Coupling according to ASME B16.11 Standard
Quality controller visual check surface and marking, and measure the size.
Test BSPP Thread by Go-No Go Gauge and stamp on mill test certificate.
ASTM A105 Half Coupling Inspection
Third party inspection: BV, SGS, LR, DNV, ABS
2 Inch Pipe Coupling

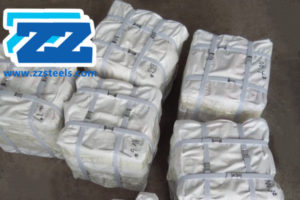

Package
Lining up the 2″ ASTM A105 Half Coupling in carton and Marking List on Each Carton.
Each Carton will be re-packed with waterproof fabric.
Carbon Steel Pipe Coupling
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, 2 Inch A105N Half Coupling BSPP MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
