BSP Threaded Union Stainless Steel 304

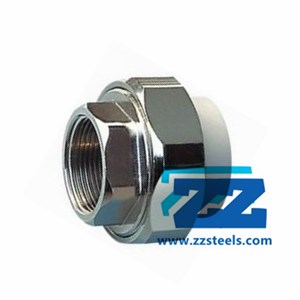

Stainless Steel Pipe Union
Zizi is ISO certified leading manufacturer of forged steel pipe fittings and supplies SS 304 BSP Threaded Union for industrial applications.
Stainless steel unions are high quality and durable, they can resistant to corrosive, high pressure and temperature. We attach great importance to quality and deliver them with their MTC to you.
Pipe unions contains three parts and they connect with pipes by threaded or socket weld. We offer forged union in various dimensions and materials and approve custom dimensions.
BSP Union Dimensions
Product: BSP Threaded Union
Standard: MSS SP-83
Diameter: 2”
Pressure: 3000LB
Thread: BSPP
Material: ASTM A182 F304
Heat Treatment: Solution

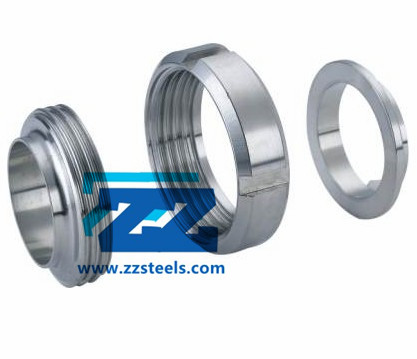

Three Part of BSP Threaded Union
Features of BSP Threaded Union
- Leak-proof
- Quick installation
- Easy usage
- Durable
- Low cost
- Convenient maintenance
Threaded Union Specification
| Standard | ASME B16.11, BS 3799, MSS SP-83, JIS B2316, HG/T21634, SH3410 |
|---|---|
| Diameter | 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”,3”, 4”. |
| Pressure | 2000LB, 3000LB, 6000LB BSP Union |
| Threads | NPT, BSPP, BSPT, GI, PT |
| Stainless Steel | ASTM A182 F304/304L/304H BSP Union, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel | ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
| Duplex Stainless Steel | ASTM A182 F51, F53, F55, F60 |
| Copper Nickel Alloy | Monel 400, K500, UNS C70600, UNS C71500 BSP Union |

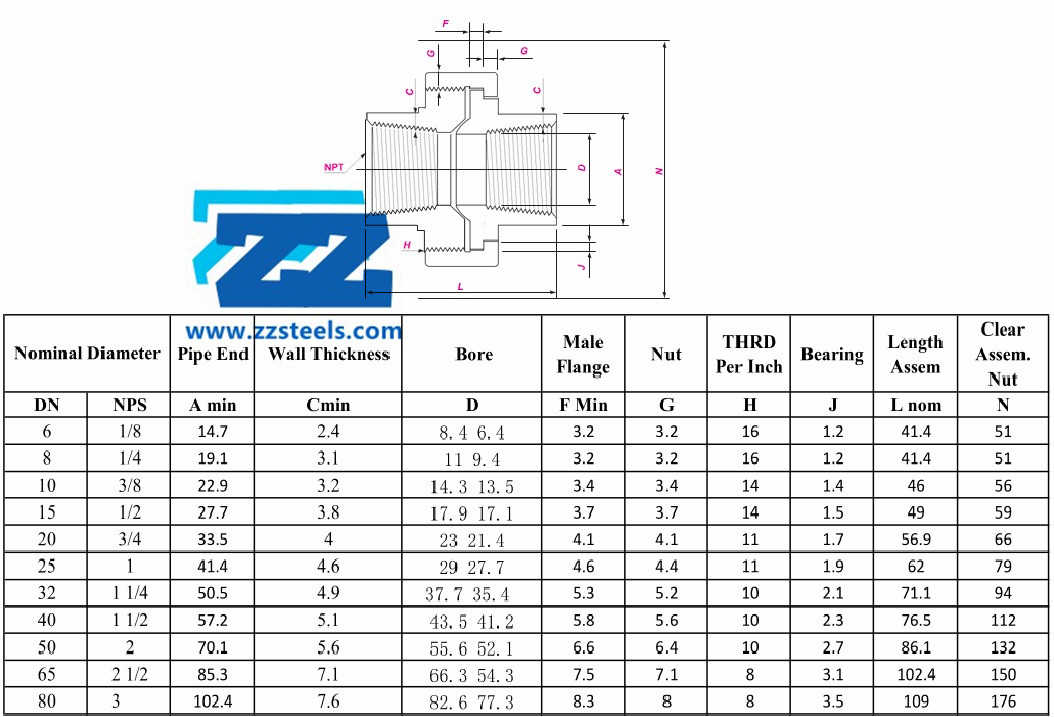

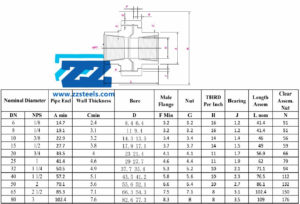

Threaded Union Dimensions
Difference between NPT & BSP
NPT (National Pipe Thread) generally refers to tapered threads with 60°angles. It is an American standard thread.
BSP Union (British Standard Pipe) has 55°thread angles, the threads can be tapered (BSPT) or parallel (BSPT). Those threads are prevalent in Australia and the commonwealth countries.
Their thread pitch is different so that they cannot use together.
Shipment of Threaded Fittings
Delivery Port: Shanghai, Tianjin, Qingdao
Lead Time: 7 Days are ready for shipping
Package of BSP Union: Plastic film, carton cases, wooden cases.
Document: BL, CI,CO, MTC, PL
Certificate: CE, ISO, TEST REPORT
ASTM A182 F304 Properties
Chemical Composition,%
| C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18-20 | 8-10.5 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 40 (%) |
Order Enquiry Form
SS 304 Threaded Union MTC
