2 Inch ASTM A105 Forged Union NPT
Carbon Steel Pipe Fittings Exporter
Zizi is one of top quality forged fittings manufacturer, exporter and supplies ASTM A105 Forged Union NPT Class 3000 2 Inch MSS-SP-83 for project.
We produces high quality forged steel threaded fittings in Class 2000, 3000 and 6000, as well as Socket Weld fittings in class 3000 and 6000.
Our forged pipe fittings are including 90 Degree Elbow, 45 Degree Elbow, Forged Cap, Equal Tee, Reducing Tee, Full and Half Coupling, Straight and Reducing Coupling, Forged Union, Bushing, Plug, Swage Nipple
Carbon Steel Threaded Fittings Dimensions
| Standard | ASME/ANSI B16.11, BS3799 |
|---|---|
| Diameter Range | 1/8 to 4 inch / DN6-DN100 |
| Pressure Rate | 3000lb, 6000lb, 9000lb, |
| Thread | NPT, BSPP, BSPT |
| Material | ASTM A105, A350 LF2/LF3,A694 F52, F60, F65, F70 |
ASME B16.11 Forged Fittings
Surface Treatment
Normalizing Heat Treatment
We will use Anti-rust oil on all Forged Steel Fittings before delivery.

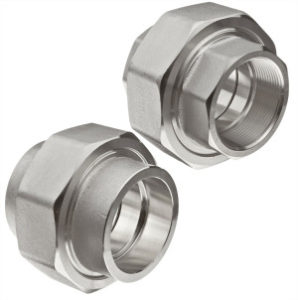

ASTM A105 Forged Union Dimensions
Size: 2 Inch
Pressure: Class 3000
Thread: NPT
Technics: Forged Steel Fittings
Standard: MSS SP-83
ASTM A105 Forged Union Dimensions
ASTM A105 Chemical Composition
| C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 | 0.3 | 0.12 |
ASTM A105 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
ASTM A105 Forged Fittings
Inspection
Inspect ASTM A105 Forged Union according to ASME B16.11 Standard
Quality controller check the diameter, thickness, tolerance and marking
Third party inspection: BV, SGS, LR, DNV, ABS and approve inspection certificate.
Carbon Steel Forged Fittings and Flanges
Shipping Information
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ
Document: CI, PL, CO, BL, MTC

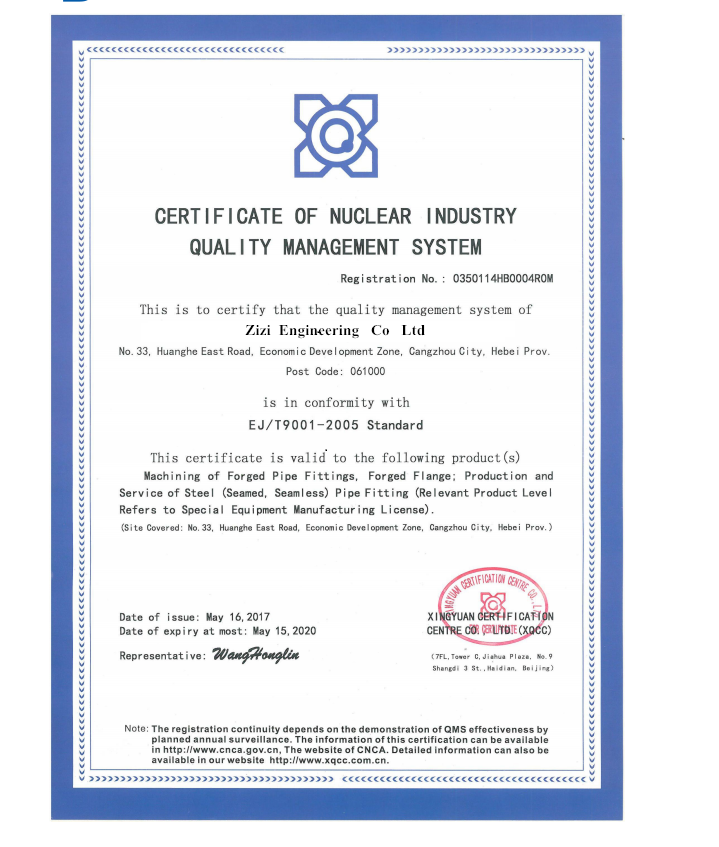

Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
