Carbon Steel Concentric Reducer ASTM A234 WPB
Carbon Steel Pipe Reducer
Sufficient inventory for ASTM A234 WPB Carbon Steel Concentric Reducer, Zizi offers 12” x 6” Sch40 pipe reducer ASME B16.9 in best price.
Carbon steel buttweld fittings are durable and cost effective, they are widely used in different industries. ASTM A234 WPB is one of the most common used carbon steel, it resistant to high pressure and temperature. A234 WPB Concentric reducer is buttweld fitting that used to connect pipes with different diameter, and it also helps avoid media deposition at the joint.
Zizi is high quality steel pipe fittings manufacturer and supply buttweld fittings in carbon steel, stainless steel, alloy steel and duplex steel.
12 x 6 Concentric Reducer Dimensions

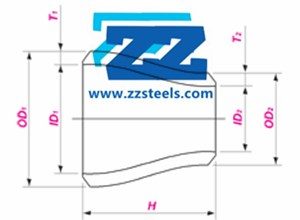

Concontric Reducer Dimensions
Nominal Size
DN: 300 X150
NPS: 12 X 6
Outside Diameter
OD1: 323.8
OD2: 168.3
End to End
H: 203

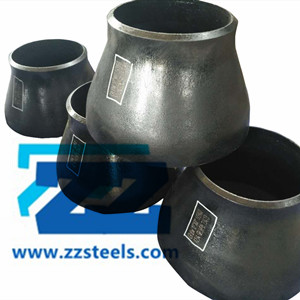

Carbon Steel Concentric Reducer Sch 40
Specification
Item: Concentric Reducer
Size: 12” x6” Sch 40
End: BE
Material: ASTM A234 WPB
Surface: Black Primer
Standard: ASME B16.9
Shipment
Package: plastic film, wooden cases
Lead Time: 12 Days are ready for shipping
Delivery Port: Shanghai, Tianjin, Qingdao

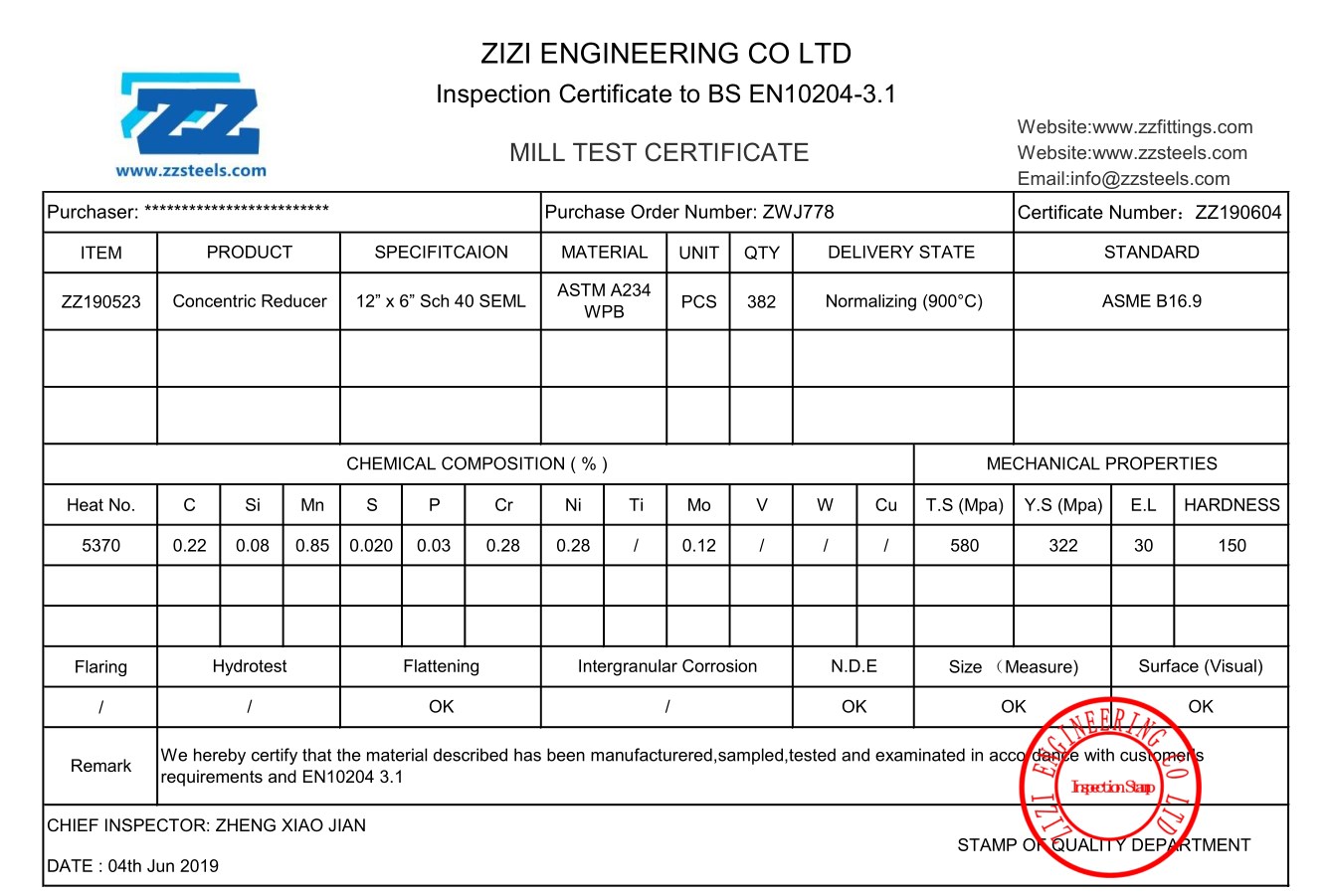

Document: CI, PL, CO, BL, MTC of ASTM A234 WPB Concentric Reducer
Certificate: CE, ISO, TEST REPORT

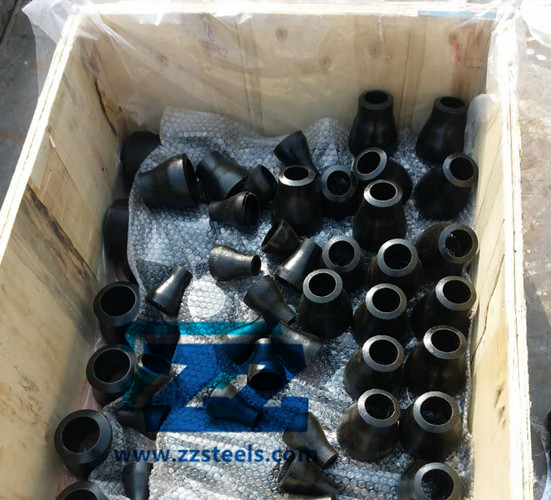

Carbon Steel Reducer Package
Inspection of ASTM A234 WPB Concentric Reducer
- Inspection conforms to standard ASME B16.9
- In-house inspection covers the marking, surface and dimensions.
- Offer third party inspection.
ASME B16.9 Steel Pipe Reducer Dimensions
| Standard | ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459 |
|---|---|
| Diameter | NPS 1/2 to NPS 48, DN15 to DN1200 |
| Wall Thickness | Sch 10S, 20, STD, 40 XS, 80, 120, 160, XXS Cu-Ni 90/10 Fitting |
| Type | Concentric Reducer and Eccentric Reducer |
| Stainless Steel Concentric Reducer | ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel Concentric Reducer | ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70, |
| Alloy Steel Concentric Reducer | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
| Duplex Steel Concentric Reducer | S 31803, S 32205, S 32550, S 32750, S32760 |
How to Calculate The Weight of Steel Pipe Reducer?
- Formula
0.02466 × S ×[ (D+d)/2-S] × H / 1000
S: Wall thickness of Butt Weld Reducer
D: Outside diameter of the larger end
d: Outside diameter of the small end
H: End to end dimension
- Weight Chart
Carbon Steel Pipe Reducer Weight Chart
ASMT A234 WPB Properties
ASTM A234 WPB Chemical Composition
| C | Mn | P | S | Si |
|---|---|---|---|---|
| 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1 min |
ASTM A234 WPB Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 415-585 (Mpa) | 240 (Mpa) | 22 (%) |
