Concentric Reducer Copper Nickel C71500
Copper Nickel Reducer
Zizi is manufacturer of copper nickel pipe fittings include concentric reducer, nipple, 90° Elbow, Equal and Reducing Tee, Cap, Coupling, Bushing and Union.
C71500 is a commonly used copper nickel alloy with good corrosion resistance, copper nickel C71500 pipe fittings is very suitable for marine industries. Copper nickel concentric reducer has beautiful golden appearance because of the high content of copper.
We have various copper nickel pipe fittings in stocks and export 10” x 12” sch 80 C71500 concentric reducer to South Africa.
What is Copper Nickel C71500?
Copper nickel C71500 is also know as Copper Nickel (70/30), offers extraordinary resistance to corrosion and stress corrosion cracking, as well as moderate strength, workability and weld-ability. The chief composition is copper, and it also contains 30% nickel and limited additions of manganese and iron.
More details for wrought copper nickel C71500 is defined in ASTM A466 and ASME SB466.
Concentric Reducer Dimensions
| Standard | ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459 |
|---|---|
| Diameter | NPS 1/2 to NPS 48, DN15 to DN1200 |
| Wall Thickness | Sch 10S, 20, STD, 40 XS, 80, 120, 160, XXS |
| Type | Concentric Reducer and Eccentric Reducer |
| Stainless Steel Reducer | ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347 |
| Carbon Steel Reducer | ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9, A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70, |
| Alloy Steel Reducer | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
| Duplex Steel Reducer | S 31803, S 32205, S 32550, S 32750, S32760 |
| Copper Nickel Reducer | ASTM B151 UNS C70600 / C70610 / C70620 |
How to Calculate the Weight of Pipe Reducer
Formula
0.02466 × S ×[ (D+d)/2-S] × H / 1000
S: Wall thickness of Butt Weld Reducer
D: Outside diameter of the larger end
d: Outside diameter of the small end
H: End to end dimension

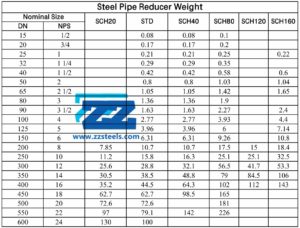

Weight Chart
Steel Pipe Reducer Weight

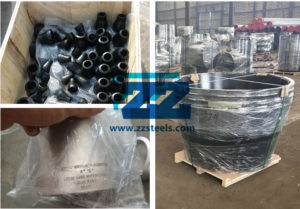

Package of Steel Pipe Reducers
- Print marking at surface.
- Wrapped concentric reducer with plastic film.
- For large dimensions reducer, we will tie them to wooden pallets.
- For small diamensions reducer, we will put them ito wooden cases.
Package of Steel Pipe Reducers
Application of Copper Nickel Concentric Reducer
- Sea Water Equipment
- Chemical
- Off-Shore Oil Drilling Companies
- Power Generation
- Gas Processing
- Pulp and Paper Industry
Copper Nickel C71500 Properties
Chemical Composition,%
| Cu | Ni | Fe | Mn | Zn |
|---|---|---|---|---|
| Rem | 30 | 0.7 | 1 | 1 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|
| 372-517 | 483 | 27 | 80-120 |
