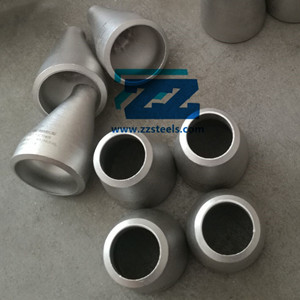

Concentric Reducer Stainless Steel 316
Concentric Reducer ASME B16.9
Stainless Steel Concentric Reducer is manufactured according to ASME B16.9, American standard for buttweld pipe fittings.
Stainless steel buttweld fittings is known for the high strength, excellent corrosion withstand and long service life. They are suit for air, water, oil and natural gas applications. Schedule of buttweld fittings refers to the wall thickness, higher schedule pipe fittings can bear higher pressure. Sch 10s, Sch 40 and Sch 80 pipe reducer is more common.
Zizi is manufacture, exporter of ASME butt weld pipe fittings, we have stainless steel 316 reducers in stocks and offers 5” x 3” Sch10S Concentric reducer A403 WP316 for Singapore with best price.
Stainless Steel Concentric Reducer Dimensions
| Standard | ASME B16.9, SH3408, HG/T21635, HG/T21631, GB/T12459, GB/T13401, SY/T0510 |
|---|---|
| Diameter | DN15 to DN2000, NPS 1/2” to NPS 80” |
| Thickness | Sch 10S, 40, STD, 80, XS, 100, 120, 140, 160, XXS Stainless Steel Reducer |
| End | Plain (PE), Beveled (BE) |

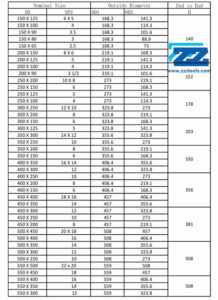

Steel Pipe Reducer Dimensions
Concentric Reducer Material Grade
Carbon Steel Pipe Reducer
ASTM A234 WPB, SS400, WPL6, WPHY42, WPHY52, WPHY65
Stainless Steel Concentric Reducer
ASTM A403 WP304/ 304L, WP306/ 316L, WP309S/309H, F310, WP317, WP321, WP347
Alloy Steel Pipe Reducer
ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP23, WP91
Copper Nickel Alloy Pipe Reducer
NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276, C 70600, C71500
Pipe Reducer Catalogue
Stainless Steel pipe reducer can be divided into concentric reducer and eccentric reducer.
Concentric reducer is symmetrical, the center of two end are on the same line, while eccentric reducer is not symmetrical and usually used in the vertical pipeline.
According to the manufacturer technique, it also divided into seamless reducer and welded reducer. Large diameter reducer often is welded in order to save cost.
Based on their materials, there are stainless steel reducer, carbon steel reducer or alloy steel reducer.
Stainless Steel Concentric Reducer Description

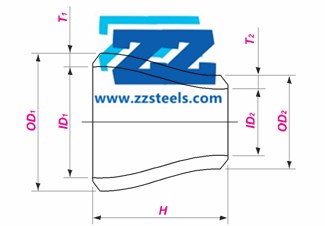

Concentric Reducer
Dimensions
NPS=5″X3″, OD1=141.3, OD2=88.9, H=127, Wall Thickness= Sch10s
Material
Stainless Steel ASTM A403 WP316
Standard
Stainless steel butt weld fittings conform to ASME B16.9.
Quality
- Manufacturing facility is ISO
- Material certificates are available upon request
Benefits of Butt Weld Fittings
- Large selection for diameter and wall thickness
- Cost advantages
- Offer a continuous metal structure to increases the strength of pipeline.
ASTM A403 WP316 Fittings Properties
SS316 Reducer Chemical Composition
| C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|
| 0.03 | 2 | 1 | 0.04 | 0.03 | 16-18 | 10-14 |
SS316 Reducer Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 515 (Mpa) | 205 (Mpa) | 30 (%) |
Order Enquiry Form

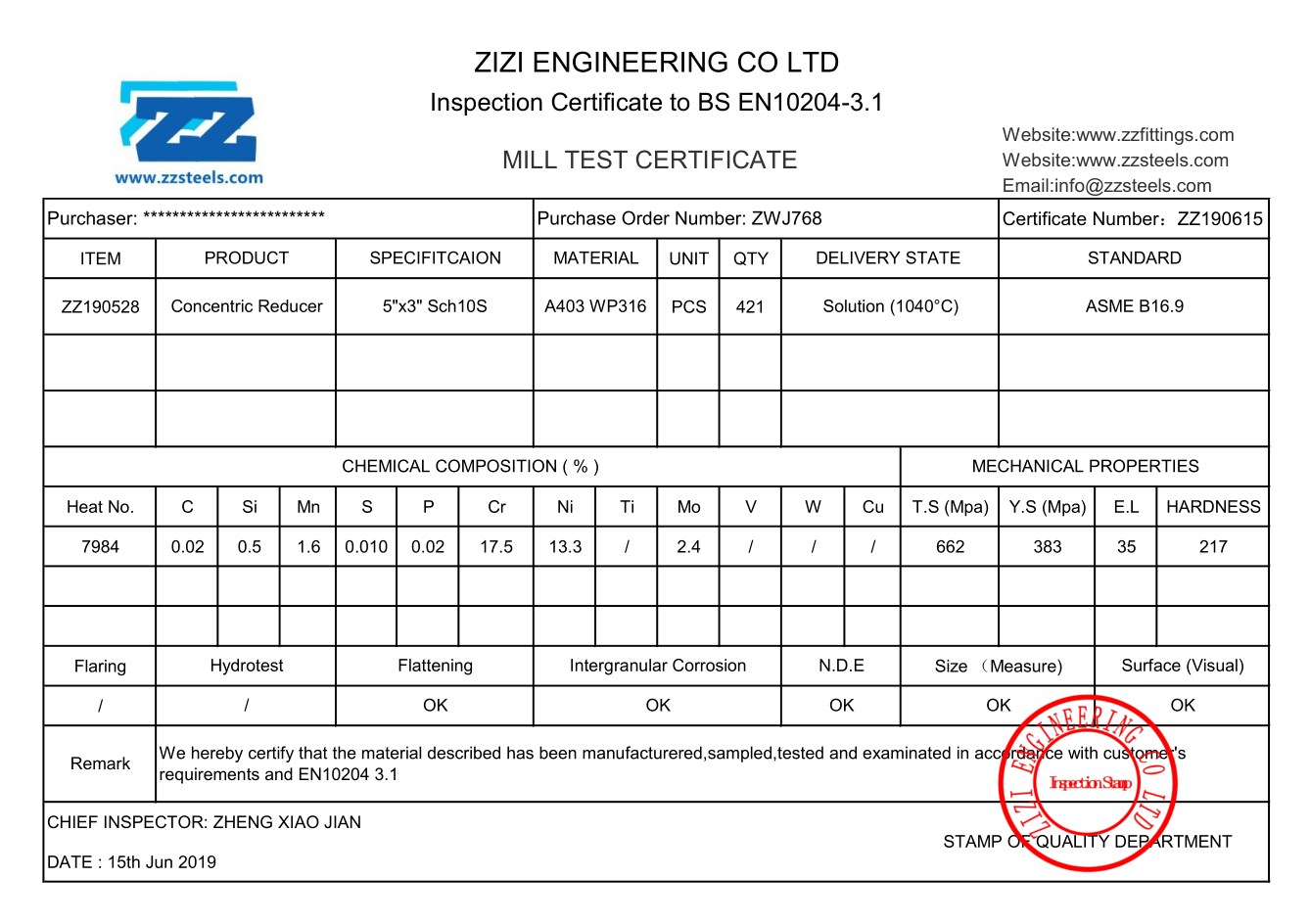

ASTM A403 WP316 Concentric Reducer ASME B16.9-MTC
