MSS SP 97 Outlet Pipe Fittings

Pipe Olet manufacturer Zizi has a large number of Threadolet NPT MSS-SP-97 3/8” X 4” Class 3000 ASTM A182 F22 in stock. Also offer sockolet and weldolet in any customized sizes and material.

NPT threadolet is a hot product for branch connection, many industries need it to provide branches for the main pipe such as chemical, paper, pharmaceutical, construction and so on. Compared to traditional branch connect ways, it is safe, low cost and easy to use.

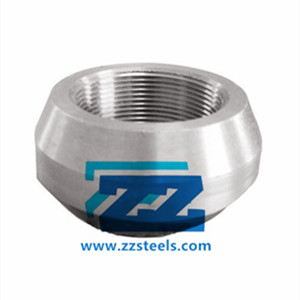

What is NPT Threadolet

Threadolet is one kind of reinforced branch fittings. It has a basic design as weldolet with female threaded connections. The branch is at 90 degree cross the main pipe, and threadolets could be full size or reducing size.

Full size NPT threadolets connect pipes with same diameter, and reducing threadolets connect pipes with different sizes. 3/8” branch sized threadolet can used with main pipes from 1/2” to 36”.

NPT is National Pipe Tapered thread with 60 degree thread angles.

Threadolet Dimensions

Branch Outlet Pipe Fittings

• Weldolt
• Sockolet
• NPT threadolet
• Latrolet
• Nipolet
• Flange Olet

Package of Olet Pipe Fittings

• Brush anti-rust oil at the surface
• Put 3/8” x 4” threadolet into carton boxes.
• Pack the boxes into wooden cases and label it for easy identification.

Inspection of NPT Threadolet

1. Check the surface and marking, make sure they are clean and in good condition. Marking is “3/8”X4” Threadolet 3000# A182 F22 MSS SP 97”.
2. Measure the size of nominal size, length, OD of fitting, length and thread and so on. Compared to the tolerance and ensure they are qualified.
3. Use go/no go gauge to test the NPT Thread.

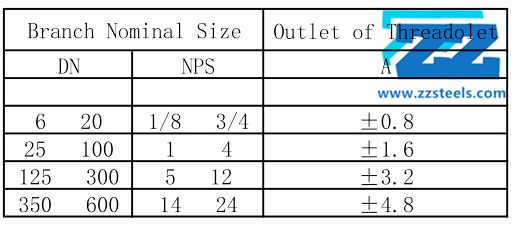

Tolerance of Threadolet
