SA210 Seamless Precision Tube

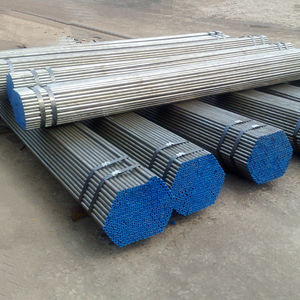

SA210 Precision Tube
We are manufacturer of Precision Tube and providing SA210 Precision Tube OD 22.4 x 3.2 x 2950mm for Chile market.
Feature
Size: 22.4 x 3.2mm
Length: 2950mm
Material: SA210
Manufacture: Cold drawing + Annealing
SA210 Tube
What is SA210?
It is ASME standard specification covers seamless medium carbon steel with minimum wall thickness, boiler tubes and boiler flues. The sizes and thicknesses usually are 1/8” to 5” (12.7mm to 127mm) in outside and 0.035” to 0.5” (0.9mm to 12.7mm) in minimum wall thickness. It covers material grades A210 & Sa210 Grade A1, Grade C, Grade B, A1 and Grade C is popular in oil and gas industry.
SA210 Tube Chemical Composition, %
| Grade | C | Mn | Si | P | S |
|---|---|---|---|---|---|
| A1 | 0.27 | 0.93 | 0.1 | 0.035 | 0.035 |
| C | 0.35 | 0.29-1.06 | 0.1 | 0.035 | 0.035 |
SA210 Tube Mechanical Properties
| Grade | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| A1 | 415 Min | 255 Min | 30 Min |
| C | 485 Min | 275 Min | 30 Min |
Cold Drawn SA210 Tube Tolerance
| SA210 Pipe | Outside Diameter, mm | Tolerance, % |
|---|---|---|
| Wall Thickness & Tolerance | OD＜25.4 | ±0.10 |
| Outside Dia. & Tolerance | OD≤38.1 | +20/-0 |

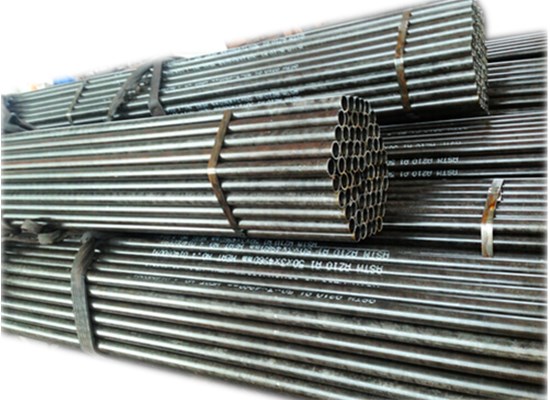

A210 Seamless Tube
Cold Drawn Precision Tube
Cold drawing is a precision process, it provides better uniformed OD and ID, so many precision seamless tube are cold drawing. Compared to hot finish pipes, the advantages of cold drawn seamless pipe are
- Better physical properties
- Less cost of machin time
- Higher machinability
- Higher strength
- Accuracy dimensions
Carbon Steel Seamless Tube Supply Range
| Standard | A106, API 5X, A210, A53, A213, A250, A333 |
|---|---|
| Size | 1/2″ to 48″ |
| Thickness | Schedule 5S – Schedule XXS (heavier on request) |
| Coating | Galvanized, Black Primer, PE, 3PE Precision Tube |
| End | Beveled, Plain, Thread, Socket Weld |
Delivery
Zizi provides LCL, 20GP, 40GP, Air and Courier for the goods delivery. Depending on the quantity, the products usually finished within 10 days are ready for delivery. We will offer you CI, PL, CO, BL, MTC, and if you need, we can supply CE, ISO, TEST REPORT and other certifications.
