Socket Weld Coupling

We are manufacturer of Socket Welding Coupling and supplies full coupling,half coupling in kinds of materials such as carbon steel, stainless steel, alloy steel.

We have offered clients couplings in ASME, BS3799 standard dimensions and materials, as well as in some special dimensions and materials according to requirements. The abundant produce experience allows us to supply you high quality products in the shortest time.

Zizi offers socket weld forged fittings including 90 degree and 45 degree elbow, equal tee and reducing tee, coupling, union, cap and sockolet.

Types of Coupling

Full Coupling: The basic coupling type that is used to joint two pipes by socket welding. The two ends of full coupling is of equal size and connection way

Half Coupling: Only one end is socket welding.

Reducing Coupling: It is a full coupling which has two ends in different diameters.

Socket Weld Coupling Dimensions

Both SW full coupling and half coupling have the same dimension ranges.

Size: 1/8”, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″

Pressure: Class 3000, Class 6000 and Class 9000

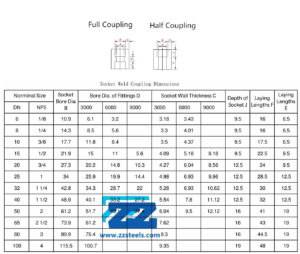

Socket Weld Coupling Dimensions

Materials of Forged Fittings

Stainless Steel SW Coupling

ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L ASTM A312/A403 TP304, TP304L, TP316, TP316L

Carbon Steel Forged Fittings

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C, Galvanized SW Coupling

Alloy Steel SW Half Coupling

ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91

Copper & Nickel Alloy SW Full Coupling

C10100, C10200, C10300, C10800, C12000, C70600, C71500, NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276

Why Choose Us Steel Pipe Coupling

Best Quality

In factory inspection and third party inspection is available.

Offer ISO, CE, Test Report certificate and so on.

Fast Delivery

Delivered products from Shanghai, Tianjin, Qingdao

Usually 10 Days are ready for delivery forged fittings

Attentive Service

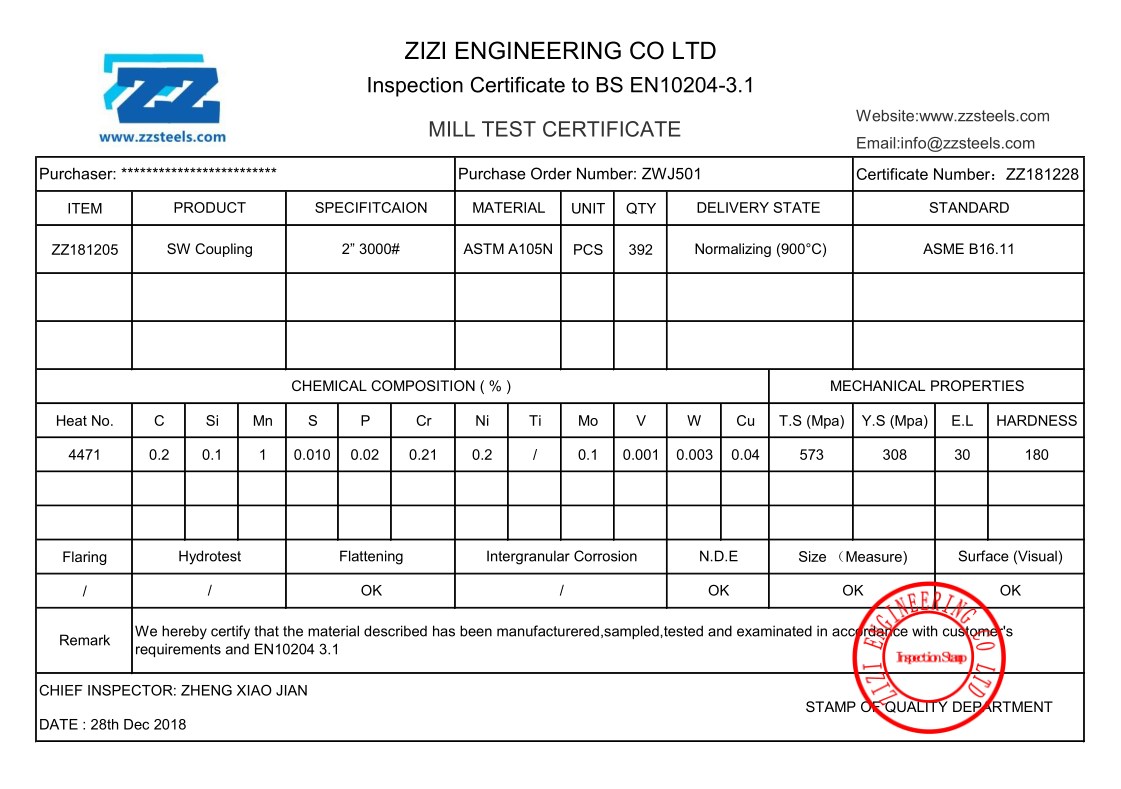

Socket weld coupling is attentive packed to keep good conditions. We use anti rust oil, plastic bag, carton box and wooden cases to pack forged steel products. Provide document such as CI, PL, CO, BL, MTC.
