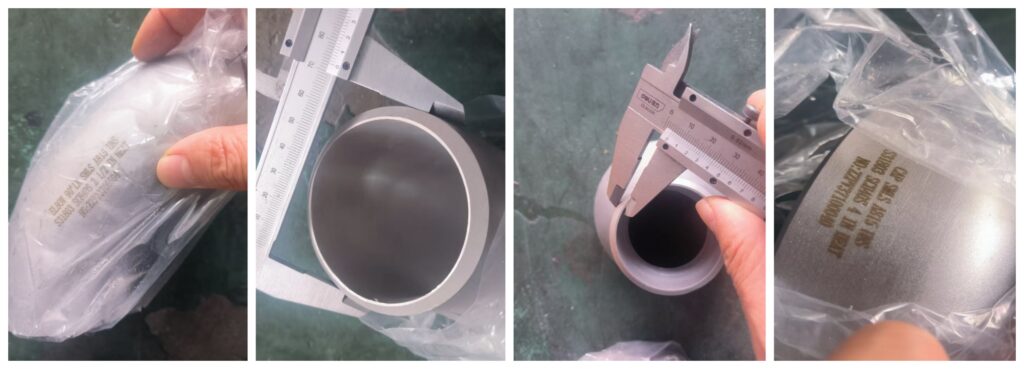

ASTM A815 UNS S31803 Pipe Fitting Dimension Inspection
Outer Diameter (OD): Measure the outer diameter at both ends of the fitting to ensure it meets tolerance requirements.
Wall Thickness (WT): Measure the wall thickness at various points on the fitting (especially the outer and inner arcs of elbows, and the transition sections of reducers) to ensure it falls within the permissible deviation.
ASTM A815 UNS S31803 Pipe Fittings Specification
| Specifications | ASTM A815 / ASME SA815 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Grades | Duplex S31803, S32205 |
| Size | 1/2” NB to 24″NB in |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
ASTM A815 UNS S31803 Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Cr | Ni | Mo | N |
| ASTM A815 UNS 31803 | MIN | |||||||||
| MAX | 0.03 | 2.0 | 0.030 | 0.020 | 1.0 | 23 | 6.5 | 3.5 | 0.20 |
ASTM A815 UNS S31803 Mechanical Property
| MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | HARDNESS |
| ASTM A815 UNS 31803 | 620 min | 450 min | 20 min | 290 max |
Equivalent Grades of ASTM A815 Duplex Steel Buttweld Fittings
| JIS | KS | UNS | ISO | DIN EN/DIN W-Nr. |
EN |
| SUS 329J3L | STS 329J3L | S31803 | X2CrNiMoN 22-5-3 | X2CrNiMoN 22-5-3 | 1.4462 |

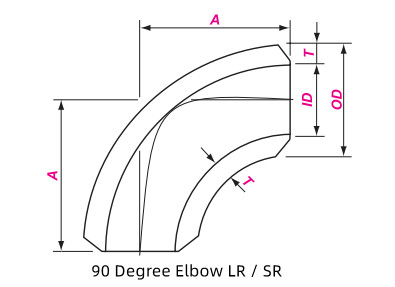

Duplex S31803 Buttweld Pipe Elbow Dimension
| DN | NPS | OD | A-LR | A-SR |
| 15 | 1/2 | 21.3 | 38 | 25 |
| 20 | 3/4 | 26.7 | 38 | 25 |
| 25 | 1 | 33.4 | 38 | 25 |
| 32 | 1 1/4 | 42.2 | 48 | 32 |
| 40 | 1 1/2 | 48.3 | 57 | 38 |
| 50 | 2 | 60.3 | 76 | 51 |
| 65 | 2 1/2 | 73 | 95 | 64 |
| 80 | 3 | 88.9 | 114 | 76 |
| 90 | 3 1/2 | 101.6 | 133 | 89 |
| 100 | 4 | 114.3 | 152 | 102 |
| 125 | 5 | 141.3 | 190 | 127 |
| 150 | 6 | 168.3 | 229 | 152 |
| 200 | 8 | 219.1 | 305 | 203 |
| 250 | 10 | 273 | 381 | 254 |
| 300 | 12 | 323.8 | 457 | 305 |
| 350 | 14 | 355.6 | 533 | 356 |
| 550 | 22 | 559 | 838 | 559 |
| 600 | 24 | 610 | 914 | 610 |
| 650 | 26 | 660 | 991 | 660 |
| 700 | 28 | 711 | 1067 | 711 |
| 750 | 30 | 762 | 1143 | 762 |
| 800 | 32 | 813 | 1219 | 813 |
| 850 | 34 | 864 | 1295 | 864 |
| 900 | 36 | 914 | 1372 | 914 |
| 950 | 38 | 965 | 1447 | 965 |
| 1000 | 40 | 1016 | 1524 | 1016 |
| 1050 | 42 | 1067 | 1600 | 1067 |
| 1100 | 44 | 1118 | 1676 | 1118 |
| 1150 | 46 | 1168 | 1753 | 1168 |
| 1200 | 48 | 1219 | 1829 | 1219 |
| 1300 | 52 | 1321 | 1981 | 1321 |
| 1400 | 56 | 1422 | 2134 | 1422 |
| 1500 | 60 | 1524 | 2286 | 1524 |
| 1600 | 64 | 1626 | 2438 | 1626 |
| 1700 | 68 | 1727 | 2591 | 1727 |
| 1800 | 72 | 1829 | 2743 | 1829 |
| 1900 | 76 | 1930 | 2896 | 1930 |
| 2000 | 80 | 2032 | 3048 | 2032 |
Application Areas
Oil and gas industry: especially offshore platforms, gas gathering pipelines, crude oil and natural gas processing equipment, dealing with corrosive environments with high chloride ions and hydrogen sulfide.
Chemical and petrochemical industries: chlor-alkali industry, fertilizer production, acid treatment, seawater cooling systems, etc., dealing with various highly corrosive chemical media.
Desalination: Pipeline, pump and valve systems, resisting corrosion from high-concentration chloride seawater.
Pollution control equipment: Flue gas desulfurization (FGD) systems, handling hot and humid flue gas containing chlorides and sulfur oxides.
Pulp and paper industry: Equipment and pipelines in bleaching plants, resisting corrosion from chlorine-containing bleaching agents.
Structural applications: Structural components that require high strength and corrosion resistance.
