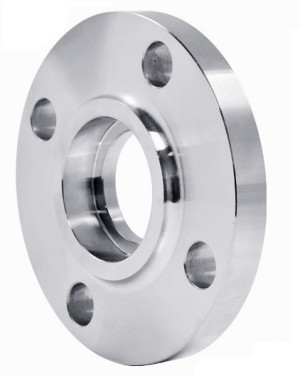

ASTM A182 F304 SW Flange 600LB

304 Stainless Steel Pipe Flange

Reasonable price and fast delivery time by quality manufacturer & exporter which offer 1 Inch ASTM A182 F304 SW Flange RF Sch 40S 600# for Kenya.

Socket-welding flanges contain a recess in the back of the flange to receive the end of the pipe, which is attached by a fillet weld around the hub of the flange. Since socket-welding connections are not as strong as butt-welded joints, the use of this type of flange is almost always confined to NPS 4 (DN 100) and smaller sizes, and to the lower pressure ratings. Its chief advantage lies in the ease of preparation and installation

A182 F304 SW Flange Dimensions

Size: 1 Inch

Pressure: 600#

Seal Type: Raised Face

Seal Thickness: Sch 40S

Standard: ASME B16.5

A182 F304 SW Flange Dimensions

A182 F304 SW Flange Dimensions

ASME B16.5 Forged Flanges

Inspection

Inspecting Stainless Steel 304 Pipe Flange according to ASME B16.5 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASTM A182 F304 Chemical Composition

C Mn Si P S Cr Ni
0.03 2 0.75 0.045 0.03 18-20 8-10.5

ASTM A182 F304 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 40 (%)

Stainless Steel 304 Forged Flanges

Surface Treatment

All stainless steel forged flanges are picking and solution heat treatment before delivery.

Industrial Flange Dimensions

Standard ASME B16.5, API 5A
Diameter Range 1/2 to 24 inch / DN15-DN600
Pressure Rate Class 150, 300, 600, 900, 1500, 2500
Product Slip On Flange, Threaded Flange, SW Flange, Blind Flange,
Lap Joint Flange, Weld Neck Flange.
Stainless Steel ASTM A182 F316, F316L, F304, F304L, SS317, SS321, SS310
Duplex Steel ASTM A182 F51, F53, F55
Carbon Steel ASTM A105N, A350 LF2/LF3. A694 F60, F65, F70, F52
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22 ,F91

Pipe Flange 1 Inch

Package

Packed 1 Inch A182 F304 Socket Weld Flanges into wooden case.

China Flanges and Fittings

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Tanzania, South Africa.

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Yemen, Jordan, Lebanon.

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay.

Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.

Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden.
