24 Inch ASTM A234 WP5 Elbow
Alloy Steel A234 WP5 Fittings
An ISO 9001 certified company Zizi is a trusted manufacturer which supplies 24 Inch Sch30 ASTM A234 WP5 Elbow SMLS 45 Degree for Cambodia.
Alloy Steel Fittings are used for the pressure piping systems of moderate and high temperature services. A234 indicates the materials properties of different kinds of carbon steel and alloy steel,WP5 is one of the steel grade in this standard.W means weldable,P means pressure,5 is a grade.
Alloy Steel Pipe Fittings Dimensions
| Standard | ASME B16.9 |
|---|---|
| Diameter | DN20 to DN1500/ 3/4” to 60” |
| Schedule | Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS |
| Type | Seamless, Weld and Fabricated |
| A234 Fittings | WP5 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducing Tee, 45 Degree Elbow, Pipe Cap, Stud End, Pipe Bend |
| Stainless Steel | ASTM A403 WP304/304L, 316/316L, 321, 310S, 317,347 |
| Duplex Steel | ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S32760 |
| Carbon Steel | ASTM A234 WPB, A420 WPL3,WPL6, WPL9, WPHY42, WHPY52, WPHY60, WHPY65, WPHY70. |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
ASTM A234 WP5 Elbow Dimensions
Size: 24 Inch
Thickness: Sch 30
Type: Seamless
Angle: 45 Degree
End Type: BW

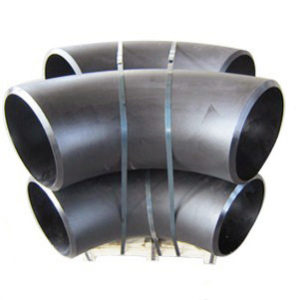

ASTM A234 WP5 Elbow Dimensions
Alloy Steel Buttweld Fittings
Marking and Packing
Our products like alloy steel astm a234 wp5 elbow are packed to make sure there is no damaged during transportation. Customary export packaging is completed in wooden case or pallet.
All alloy steel pipe fittings will be marked with grade, size, type, heat no. We can do customer special request on our products.
ASTM A234 WP5 Chemical Composition
| C | Mn | Si | P | S | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.15 | 0.3-0.6 | 0.2-0.5 | 0.015 | 0.02 | 4-6 | 0.45-0.65 |
ASTM A234 WP5 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 415 – 585 (Mpa) | 205 (Mpa) | 20 (%) |
Alloy Pipe Fittings
Surface Treatment
Normalizing Heat Treatment.
All Alloy Steel WP5 Butt Weld Fittings are surfaced with anti-rust oil before delivery.
Alloy Steel WP5 Buttweld Fittings
Inspection
Inspect ASTM A234 WP5 45 Degree Elbow according to ASME B16.9 Standard
Quality controller check the diameter, thickness, tolerance and marking
Third party inspection: BV, SGS, LR, DNV, ABS and approve inspection certificate.
Alloy Steel Fittings and Flanges
Shipping Information
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Schedule 30 Pipe Fittings
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
