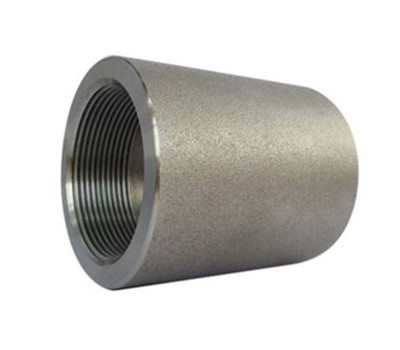

ASTM A105 Straight Coupling Supplier
ASTM A105 Threaded Fittings
Carbon steel forged fittings manufacturer Zizi supplies 3/4″ ASTM A105 Straight Coupling NPT Class 3000 ASME B16.11 at $2/pc for Vietnam.Accompany with ASTM A105 Threaded Elbow, SS316 Half Socket and SS316 Full Coupling BSP.
ASTM A105 is also known as ASME SA 105 which covers seamless forged carbon steel piping components for use in pressure systems at ambient and high-temperature service.
It is the material for Forged Carbon Steel Pipe Fittings that design and dimension conform to ASME B16.11.
NPT threads on Forged Steel Fittings conform to ANSI/ASME B1.20.1.
ASTM A105 Sraight Coupling Dimensions
Exw Price: $2/pc
Size: 3/4 inch
Pressure: Class 3000
Thread Type: NPT
Standard: ASME B16.11
Technics: Forged Steel Fittings
ASTM A105 Straight Coupling Dimensions
ASTM A105 Chemical Composition
| C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 | 0.3 | 0.12 |
ASTM A105 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
Carbon Steel Threaded Fittings
| Standard | ASME/ANSI B16.11 |
|---|---|
| Diameter Range | 1/8 to 4 inch / DN6-DN100 |
| Pressure Rate | 3000lb, 6000lb, 9000lb |
| Forged Fittings | Forged 90 Degree Elbow, Equal Tee, A105 Straight Coupling, Threaded Plug Bushing, Cap, Union, Swage Nipple |
| Thread Types | NPT, BSPP, BSPT |
| Stainless Steel | A182 F316/316L, F304/304L, SS317, SS321, SS310 |
| Carbon Steel | A105N, A350 LF2/LF3,A694 F52, F60, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
ASME B16.11 Straight Coupling
Surface Treatment
Normalizing Heat Treatment or Pickling + Solution Treatment.
We will use Anti-rust oil on all Forged Steel Fittings and ASTM A105 Straight Coupling before delivery.
Class 3000 Straight Coupling
Inspection
Inspect A105 Forged Fittings according to ASME B16.11 Standard.
Quality controller visual check surface and marking, and measure the size.
Check the size refer to pressure rate 3000# and ASME B16.11 Standard.
Test Thread with Go-No Go Guage and according to ANSI/ASME B1.20.1.
Third party inspection: BV, SGS, LR, DNV, ABS and stamp on mill test certificate
3/4 in Straight Coupling

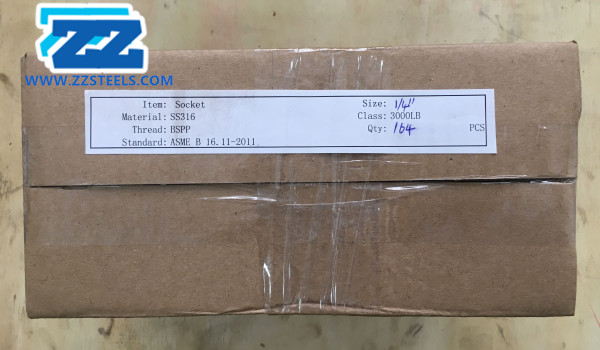

Package
Lining up the ASTM A105 Straight Coupling in carton and Marking List on Each Carton.
Packed all cartons into free fumigation wooden cases.
Carbon Steel Threaded Straight Coupling
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, A105N Coupling 3/4 Inch NPT MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Pakistan, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
