ASTM A105 Hex Head Plug MPT
Forged Fittings Distributor
Top quality forged fittings manufacturer, distributor, exporter Zizi supplies 1 1/2″ ASTM A105 Hex Head Plug MPT ASME B16.11 for Bolivia.
We produces high quality forged steel threaded fittings in Class 2000, 3000 and 6000, as well as Socket Weld fittings in class 3000 and 6000.
The functions are similar to cap, that is covering the pipe end to stop the flow.
Threaded Fittings Dimensions Table
| Standard | ASME/ANSI B16.11 |
|---|---|
| Diameter | 1/8 to 4 inch / DN6-DN100 |
| Pressure | 3000lb, 6000lb, 9000lb |
| Product | 90 Degree Elbow, Straight Tee, Reducing Tee, Swage Nipple Threaded Coupling, Bushing, Cap, A105 Hex Head Plug, Union |
| Thread | NPT and BSP |
| Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
| Carbon Steel | ASTM A105, A350 LF2/LF3, A694 F52, F60, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
Threaded Bushing
Package
Lining up the 1 1/2″ A105 Hex Head Plug in free fumigation wooden pallet.
Carbon Steel Threaded Bushing
Surface Treatment
All carbon steel threaded bushing are normalizing heat treatment and surfaced with anti-rust oil before delivery.

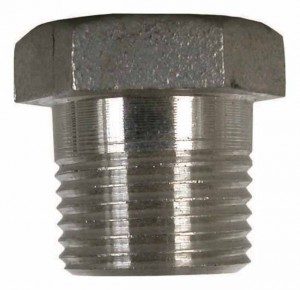

ASTM A105 Hex Head Plug Dimensions
Size: 1 1/2 Inch
Thread: Male PT
Technics: Forged Steel Fittings
Standard: ASME B16.11
ASTM A105 Hex Head Plug Dimensions
ASME B16.11 Forged Fittings
Inspection
Inspecting Forged Bushing according to ASME B16.11 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A105 Hex Head Plug Chemical Composition
| C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.15 | 0.6-1.05 | 0.035 | 0.04 | 0.1 | 0.3 | 0.12 |
ASTM A105 Hex Head Plug Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 485 (Mpa) | 250 (Mpa) | 30 (%) |
Carbon Steel Forged Fittings and Flanges
Shipping Information
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, 40HQ
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Uganda
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
