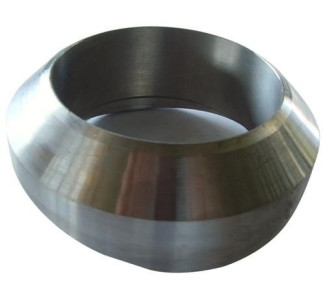

ASTM A182 F22 Weldolet
Forged Outlet
Zizi Engineering produce and supplies DN40 Sch160 ASTM A182 F22 Weldolet according to ANSI B16.11 for Gabon with SS316 Threaded Coupling
Weldolet is a reinforcing Pipe Fitting which replaces the traditional branches connecting method. The features are safety, reliability, simple to installation and low cost.
Our Forged Fittings are including Threaded Flanges, Concentric Swage, Threaded Unions, Socket Weld Couplings, Pipe Nipple, Threaded Cap.

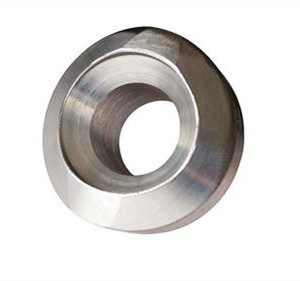

ASTM A182 F22 Weldolet Dimensions
Exw Price: $8/pc
Size: DN40
Thickness: Sch 160
Standard: ANSI B16.11
Technics: Forged Steel Fittings
ASTM A182 F22 Weldolet Dimensions
Inspection of ASME Weldolet
Inspecting Forged Weldolet according to ASME B16.11 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
ASTM A182 F22 Chemical Composition
| C | Mn | P | Si | S | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.08–0.15 | 0.3–0.6 | 0.025 | 0.15–0.50 | 0.025 | 2-2.5 | 0.9-1.1 |
ASTM A182 F22 Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 655 (Mpa) | 517 (Mpa) | 17 (%) |
Surface of Alloy Steel F22 Pipe Weldolet
All alloy steel forged pipe weldolet are normalized heat treatment and surfaced with oil before delivery.
Weldolet Dimensions
| Standard | ASME/ANSI B16.11 MSS-SP-97 |
|---|---|
| Diameter Range | 1/8 to 4 inch / DN6-DN100 |
| Pressure Rate | XS, SCH160, XXS |
| Outlet Types | Weldolet, Threadolet and Sockolet |
| Stainless Steel | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
| Duplex Steel | ASTM A182 F51, F53, F55 |
| Carbon Steel | ASTM A105N, A350 LF2/LF3 |
| Alloy Steel | ASTM A182 F11, F5, F9, F1, F12, F22 ,F91 |
DN40 Weldolet
Package
Packed DN40 ASTM A182 F22 Weldolet into plastic bag and then put into carton.
ASTM A182 Forged Steel Fittings
Shipping
Delivery port: Shanghai, Tianjin, Qingdao
Lead time: 10 days are ready to deliver
Shipment: LCL, 20GP, 40GP, Air, Courier
Document: CI, PL, CO, BL, MTC
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia
Africa: Nigeria, Madagascar,Ghana, Kenya, Angola
Middle East: Saudi Arabia, Qatar, Israel, Egypt
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador
Oceania: Papua New Guinea, Australia, New Zealand
Europe: Greece, UK, Poland, Ukraine, France, Spain
ASTM A182 F22 Properties
Chemical Composition
| C | Mn | P | Si | S | Cr | Mo |
|---|---|---|---|---|---|---|
| 0.08–0.15 | 0.3–0.6 | 0.025 | 0.15–0.50 | 0.025 | 2-2.5 | 0.9-1.1 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
|---|---|---|
| 655 (Mpa) | 517 (Mpa) | 17 (%) |
