Class 300 SW Flange ASTM A105

Carbon Steel Flange Stockholder

As a leader of carbon steel flange in the manufacturing industry, Zizi supplies Class 300 SW Flange RF 3 Inch ASTM A105 125-250 AARH to Chile market.

Socket-welding flanges contain a recess in the back of the flange to receive the end of the pipe, which is attached by a fillet weld around the hub of the flange. Since socket-welding connections are not as strong as butt-welded joints, the use of this type of flange is almost always confined to NPS 4 (DN 100) and smaller sizes, and to the lower pressure ratings. Its chief advantage lies in the ease of preparation and installation

Class 300 Socket Weld Flange Dimensions

Size: 3 Inch

Seal Type: Raised Face

Material: ASTM A105

Standard: ASME B16.5

Pipe Flange 3 Inch

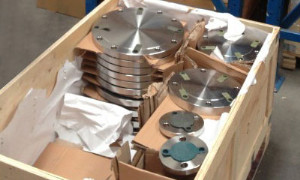

Package

Put all 3 Inch ASTM A105 Pipe Flanges into wooden cases and make list

Class 300 SW Flange Package

ASME B16.5 Forged Flange

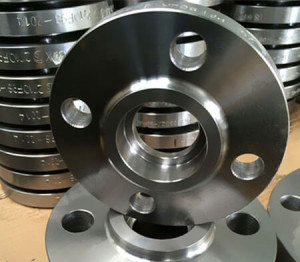

Inspection

Inspecting ASTM A105 Forged Flange according to ASME B16.5 Standard.

QA/ QC person visual check surface and marking, and measure the size.

Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.

ASME B16.5 Socket Weld Flange Inspection

Pipe Flange Dimensions Chart

Standard	ASME B16.5, API 5A
Diameter Range	1/2 to 24 inch / DN15-DN600
Pressure Rate	Class 150, 300, 600, 900, 1500, 2500
Product	Slip On Flange, Threaded Flange, Socket Weld Flange, Blind Flange, Lap Joint Flange, Weld Neck Flange.
Stainless Steel	ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310
Duplex Steel	ASTM A182 F51, F53, F55
Carbon Steel	ASTM A105N, A350 LF2/LF3
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22 ,F91

Class 300 SW Flange Schedule

Surface Treatment

Normalizing Heat Treatment

We will use anti-rust oil or black primer on all carbon steel socket weld flanges before delivery.

Forging Fittings and Flanges

Shipping

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Export Country

Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.

Africa: Nigeria, Madagascar,Ghana, Kenya, Angola, Tanzania, South Africa.

Middle East: Saudi Arabia, Qatar, Israel, Egypt, Oman, Yemen, Jordan, Lebanon.

Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay

Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.

Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden
