316 Stainless Steel Sockolet

Best quality and price for Stainless steel sockolet, Zizi stores SS 316 weldolet, threadolet and sockolet in different dimensions.

Stainless steel pipe fittings have great appearance and mechanical properties. The advantages of high strength, long service life, excellent resistant to corrosion make SS 316 sockolet very popular even it is expensive. Many industrial pipe system need them to provide an outlet such as oil, gas, chemical, power plant, shipbuilding. It is also very safe for food industry.

As a professional manufacturer, Zizi can offer branch olet fittings in various dimensions from 1/8” to 4” or customized sizes, and the material is also free to choose.

Forged Branch Outlet Fittings Dimensions

Sockolet MSS SP-97 Dimensions

Standard: MSS SP-97

Diameter: 1”

Pressure: 6000 LB Stainless Steel Sockolet

Material: ASTM A182 F316

Heat Treatment: Solution

MSS SP-97 Sockolet Dimensions

Sockolet Class 6000 Weight

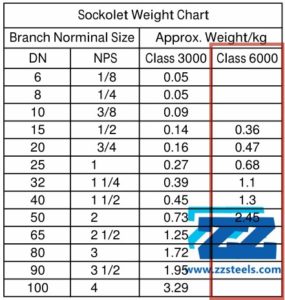

Sockolet Class 6000 Weight Chart

Inspection of Stainless Steel Sockolet

Check the surface

1. Clear and correct marking such as “1” 6000# SS 316 Sockolet MSS SP-97 ZZ279”. It covers dimensions, material, product name, standard and Lot No. .
2. The appearance of stainless steel sockolet should be no dents, die marks, porosity, undercuts.

Dimensions

1. The sizes of face of fitting, OD of fitting, socket wall, depth and cut hole diameter should be measured.
2. Make sure those value are in tolerance.

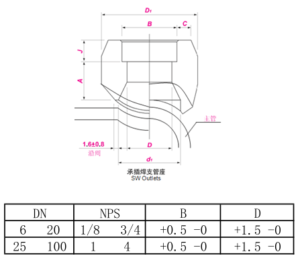

Tolerance of Stainless Steel Sockolet

Material Test

1. Check the chemical composition of SS 316 Sockolet fittings.

Package of SS 316 Sockolet

1. Wrap SS 316 sockolet with plastic film.
2. Put them into carton cases .
3. Stick labels on the cases for easy identification.
4. Pack carton cases into wooden cases.

Shipment

Delivery Port: Shanghai, Tianjin, Qingdao

Lead Time: 10 Days are ready for shipping

Document: BL, CI,CO, MTC, PL

Certificate: CE, ISO, TEST REPORT
