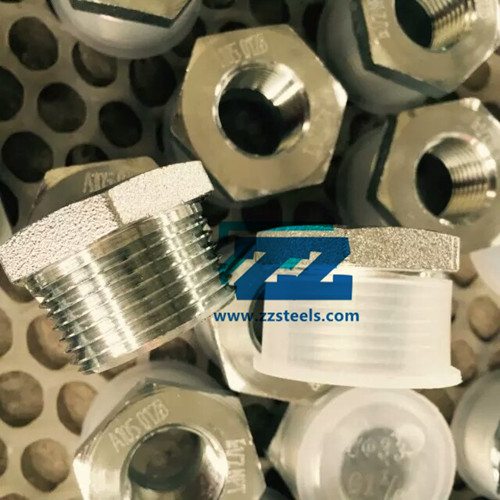

Hex Bushing Reducer 1/2” x 1/4”
Bushing Reducer NPT
Best price for Hex Bushing Reducer 1/2” x 1/4” NPT ASTM A182 F53 ASMT B16.11, Zizi offers forged steel pipe fittings in different dimensions and materials.
NPT threaded fittings are very prevalent in U.S. and Canada. NPT is a tapered thread with 60 degree angle. Hex Bushing reducer is useful to reduce the size from a larger size to a smaller size when the diameter are no more than 4 inch.
Zizi also supplies forged threaded fittings such as pipe elbow, reducing & equal tee, half & full coupling, pipe cap, pipe union, hex plug and hex bushing.
Hex Head Bushing Dimensions
Standard | ASME/ANSI B16.11 |
---|---|
Diameter | 1/8″, 1/4″, 3/8″, 1/2″, 1/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″ |
Pressure | 2000lb, 3000lb, 6000lb |
Thread | NPT and BSPP, BSPT Bushing Reducer |
Stainless Steel Bushing Reducer | ASTM A182 F316/316L, F304/304L, SS317, SS321, SS310 |
Carbon Steel Bushing Reducer | ASTM A105N, A350 LF2/LF3, A694 F52, F60, F65, F70 |
Alloy Steel Bushing Reducer | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
Duplex Steel Bushing Reducer | ASTM A 182 – F 51, F53, F55 |
Copper Alloy Bushing Reducer | ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30) |
How to Order a Hex Bushing Reducer?
The necessary elements for ordering hex bushings are
- Product
- Size, including the diameter and pressure.
- Thread Type
- Manufacturer Standard
- Material
- Quantity
Therefore, the description of an order will be like “Hex Bushing Reducer, 1/2” x 1/4” Class 3000 NPT ASME B16.11 ASTM A182 F53, Quantity 241 pcs”.
Shipment of Forged Threaded Fittings
Package: plastic bag, carton box, wooden cases.
Delivery Port: Shanghai, Tianjin, Qingdao
Lead Time: 7 Days are ready for shipping

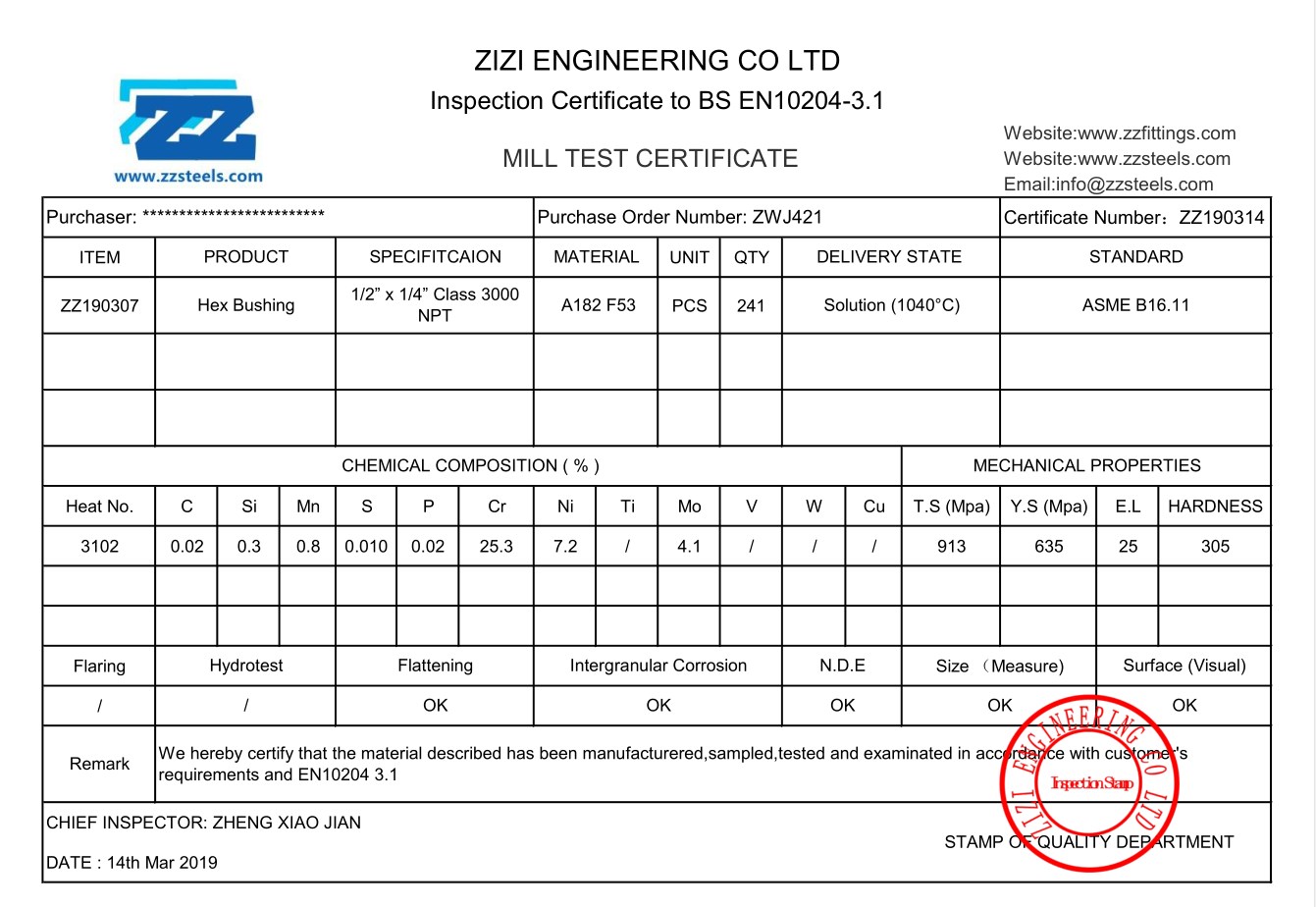

Document: CI, PL, CO, BL, MTC of hex bushing reducer
Certificate: CE, ISO, TEST REPORT
Export Country
Asia: Vietnam, Singapore, Thailand, Indonesia, Malaysia, Philippines, Kazakhstan.
Africa: Nigeria, Madagascar, Ghana, Kenya, Angola, Tanzania, South Africa.
Latin America: Uruguay, Peru, Chile, Brasil, Ecuador, Colombia, Argentina, Paraguay
Oceania: Papua New Guinea, Australia, New Zealand, Solomon Islands, Fiji.
Europe: Greece, UK, Poland, Ukraine, France, Spain, Portugal, Norway, Sweden
ASTM A182 F53 Properties
Chemical Composition
C | Mn | P | S | Si | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|
0.03 | 1.2 | 0.035 | 0.015 | 0.8 | 24-26 | 6-8 | 3-5 |
Mechanical Properties
Tensile Strength | Yield Strength | Elongation |
---|---|---|
600-930 | 500 | 15 |
