Threadolet Manufacturers

Zizi is ASME forged olet pipe fittings manufacturer that supplies threadolet 3000LB BSP in sizes and material of carbon steel A105 & stainless steel 304.

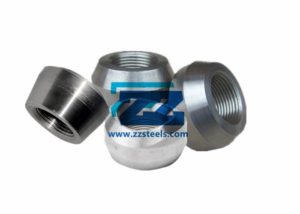

Threadolet is a thread connection pipe fittings that offers 90 degree branch connection for the main pipe. It has the same basic design as weldolet, but the dimensions ranges are different. Pressure is the thickness of threadolet. Generally speaking, 3000# threadolet is used for sch 80 pipes, and 6000# threadolet is for sch 160 pipes.

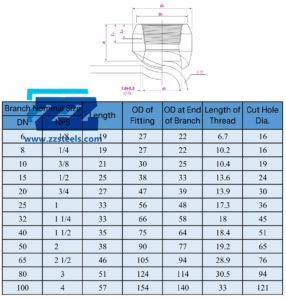

3000LB Threadolet Dimensions

1. There is a ASME B16.11 and MSS SP 97 standard for outlet pipe fittings.
2. In both ASME and MSS standard, threadolet is available in class 3000 and class 6000, diameter 1/8” to 4” for the branch.
3. The threads is in accordance with ANSI/ASME B1.20.1.

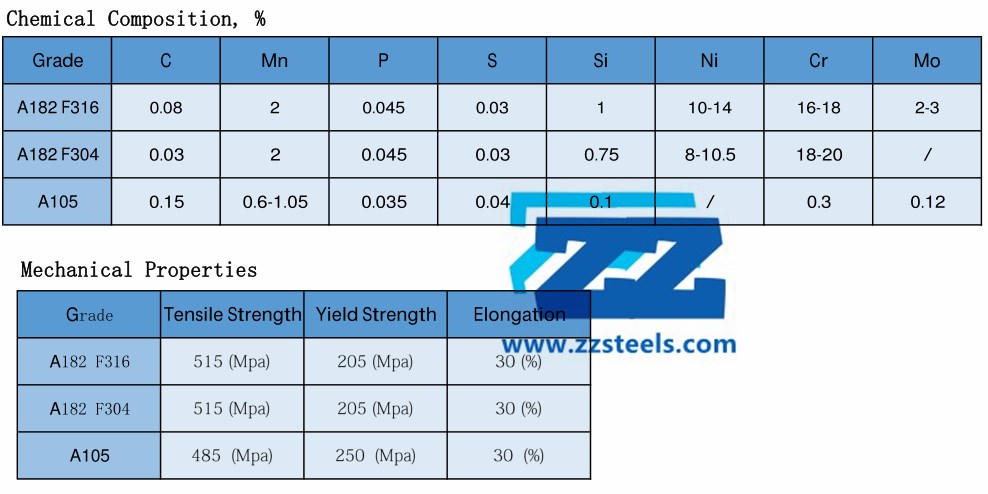

Threadolet Material Grade

Stainless Steel 3000 Threadolet

ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347

Carbon Steel Threadolet

ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70

Alloy Steel 3000 Threadolet

ASTM A182 F1, F5, F9, F11, F12, F22

Duplex Steel Threadolet

ASTM A182 F51, F53, F55, F60

Copper Alloy 3000 Threadolet

ASTM / ASME SB 111 UNS NO. C10100, C10200 , C10300 , C10800 , C12000, C12200, ASTM / ASME SB 466 UNS NO. C70600 ( CU -NI- 90/10) , C71500 ( CU -NI- 70/30)

Nickel Alloy Threadolet

NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276

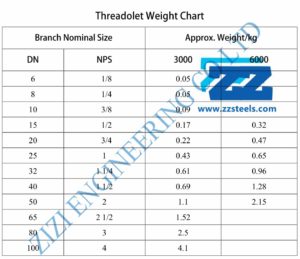

3000LB Threadolet  Weight Chart

Threadolet Description

To order threadolets, we need a detailed description to know your requirements. So how to describe a threadolet?





Dimensions

The first important thing is the dimension. It covers the diameter, pressure of outlet fittings. The diameter should cover the run pipe size and the branch size. For example, 1” class 3000 for full size threadolet (branch has the same diameter with run pipe) or 3” x 1” class 3000 for reducing size threadolet (branch size is smaller than the main pipe).

Thread Type

For threadolet, the thread type is also a major element. Using wrong thread will cause the connection to fail. The most common used thread type is NPT, BSP (including BSPP and BSPT).

Material

We offer stainless steel, carbon steel, alloy steel, nickel alloy and copper alloy for 3000lb threadolet. Specific grades are listed above.

Design Code

It is better to specify the design code. For threadolet the design code are MSS SP 97 and ASME B16.11.
